17-3
IM PX8000-02EN
Setting Action Conditions (ActCondition)
Always: The action is always executed. The specified action, explained later, is executed each
time a trigger occurs.
Fail: The action is executed when the GO conditions are not met.
Success: The action is executed when the GO conditions are met.
Setting the Sequence (Sequence)
Single: The action is executed once.
Continue: The action is executed repeatedly. It is repeated until the waveform is acquired the
number of times specified by Acquisition Count. If Acquisition Count is set to Infinite, the
action is repeated until waveform acquisition is stopped with the START/STOP key.
Setting Actions (Action Setup)

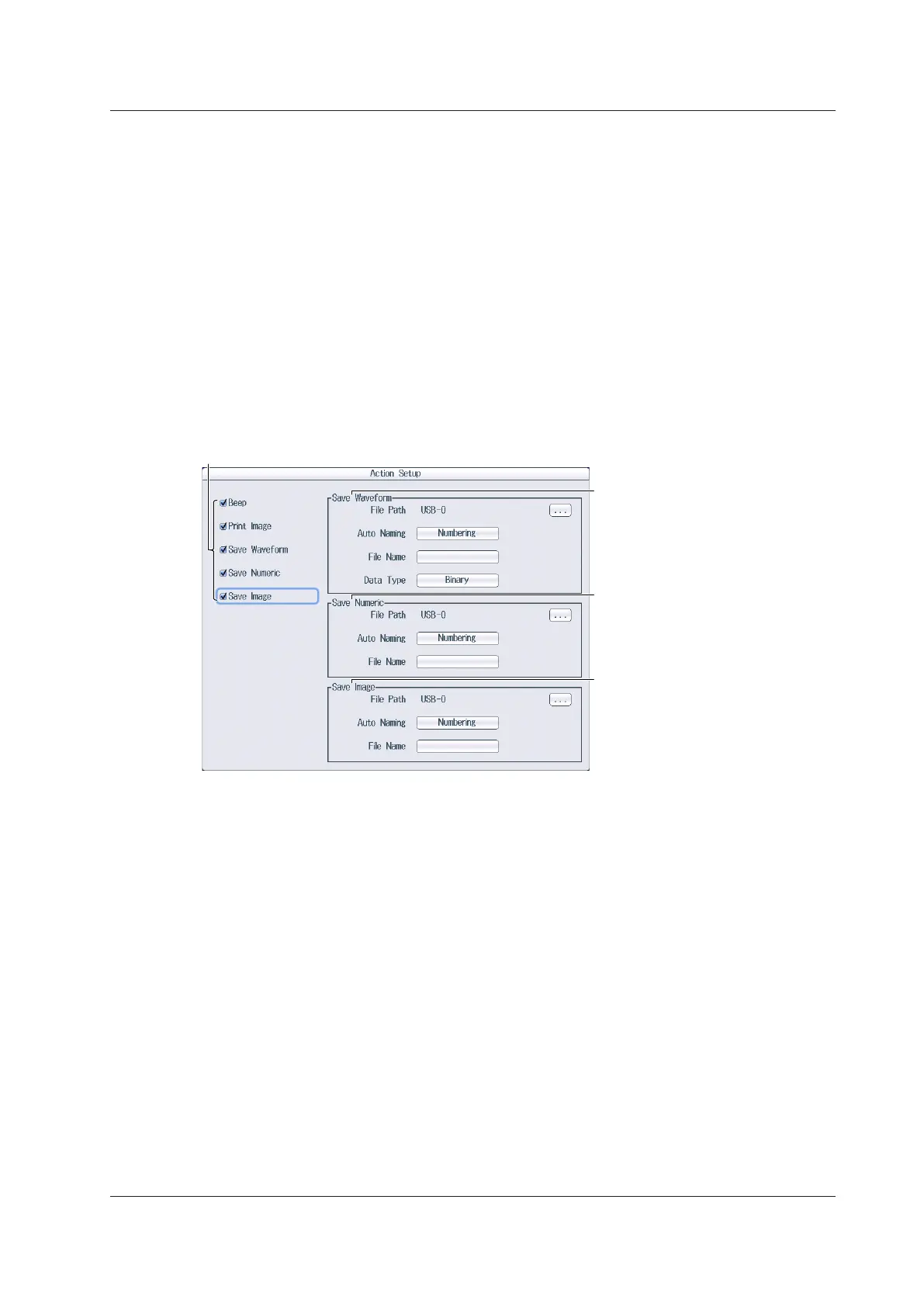

Press the Action Setup soft key to display the following screen.
Select the actions to execute (Beep, Print Image, Save Waveform,
Save Numeric, Save Image).
Set the waveform data save
destination.
► section 22.3
Set this when Save Waveform is
selected for the action.
Set the screen capture save
destination.
► section 22.3
Set this when Save Image is
selected for the action.
Set the numeric data save
destination.
► section 22.3
Set this when Save Numeric is
selected for the action.
17.1 Performing GO/NO-GO Determination with Waveform Zones
