Setting the Judgment Conditions (Judgement Setup)

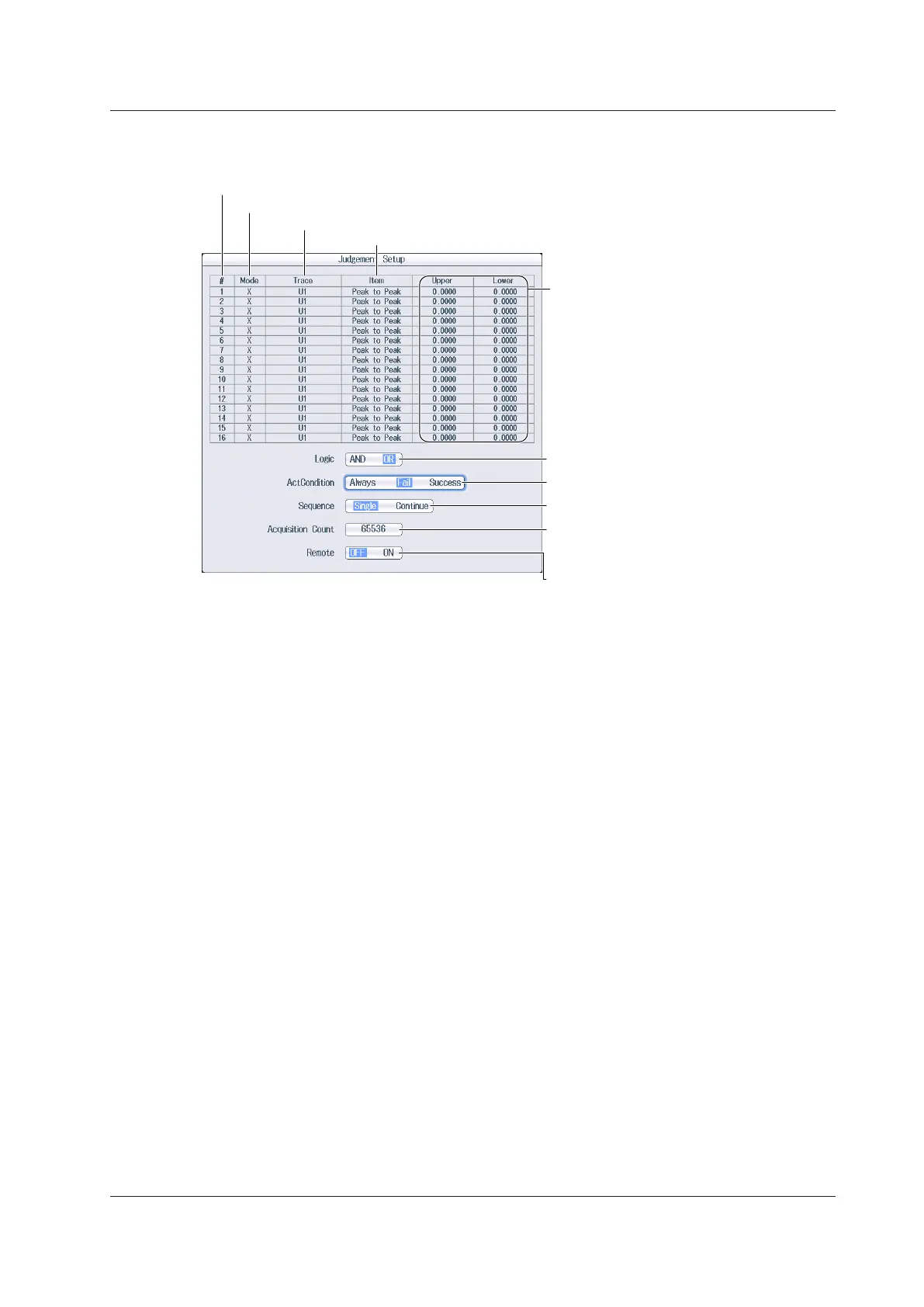

Press the Judgement Setup soft key to display the following screen.
Set the upper and lower limits of the parameters
(−9.9999E+30 to 9.9999E+30).
Set the waveform parameters.
Set the source waveform (U1-U4, I1-I4, P1-P4, AUX3-AUX8, Math1-Math8).
Set the judgment criterion (X, IN, OUT).
You can set up to 16 conditions.
Set the determination logic (AND, OR).
Set the action conditions. ► section 17.1
Set the sequence. ► section 17.1
Set the number of measurements
(the number of waveform acquisitions)
(Infinite, 1-65536).
Turns external start on and off
Setting Waveform Parameters (Item)
You can use all automatically measured waveform parameters as judgment conditions. Up to 16
parameters set as judgment conditions can be determined simultaneously. ► section 14.1
