Setting the Zone Search (Search Setup)

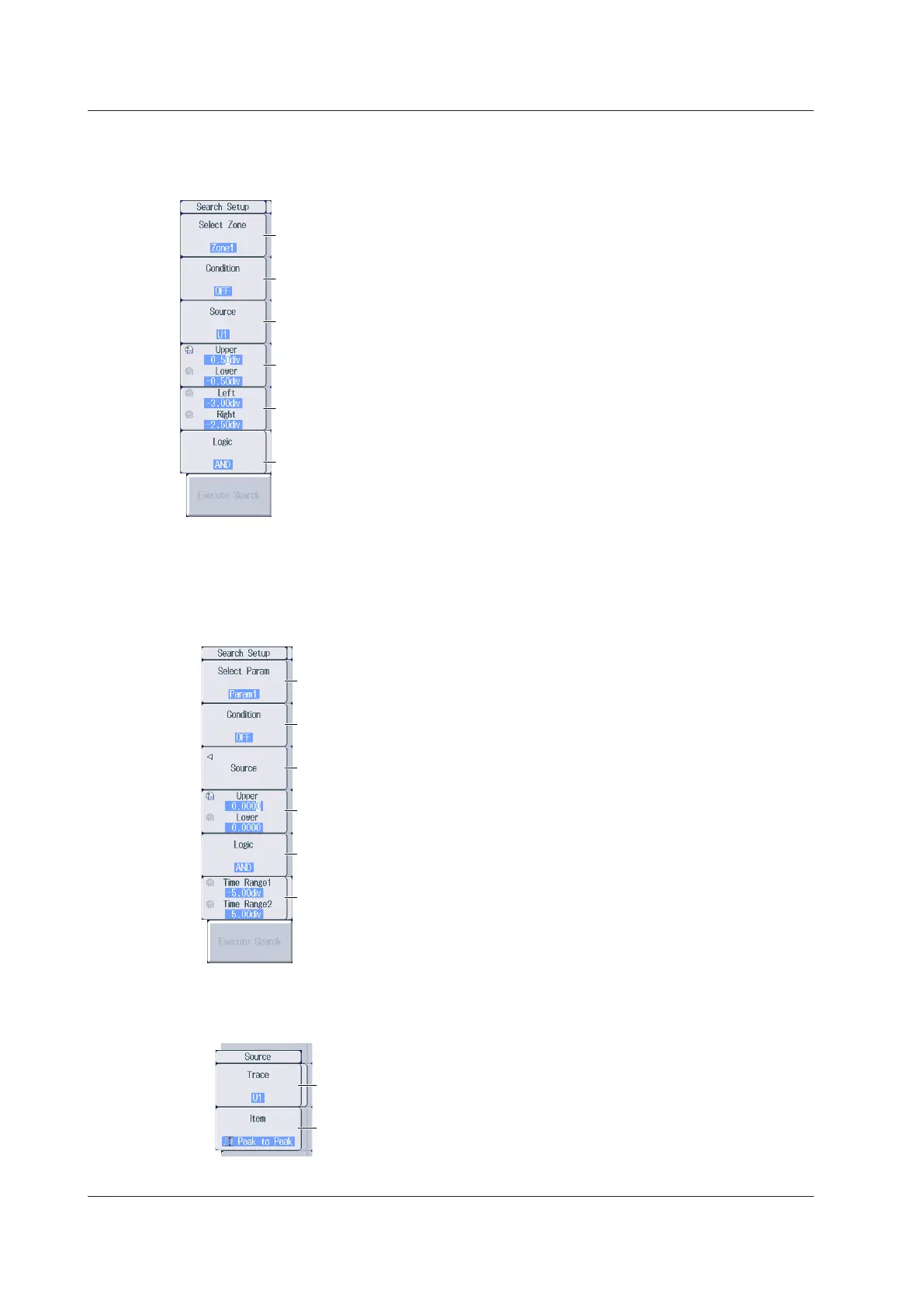

Press the Search Mode soft key, the Zone soft key, and then the Search Setup soft key to display the
following menu.
Set the source waveform (U1-U4, I1-I4, P1-P4, AUX3-AUX8).
Set the search logic (AND, OR).
Set the upper and lower limits of the search window (−5.00div to 5.00div).
The upper limit must be greater than or equal to the lower limit.
Set the left edge and right edge of the search window (−5div to 5div).
The setting resolution varies depending on the display record length.
The right edge must be greater than or equal to the left edge.
Select the search zone (Zone1-Zone4).
Set the search condition (OFF, IN, OUT).
Proceed to executing the search on the next page.
Setting the Waveform Parameter Search (Search Setup)
1.
Press the Search Mode soft key, the Parameter soft key, and then the Search Setup soft key
to display the following menu.
Set the waveform to search and parameters.
Set the parameter measurement time period (−5div to 5div).
The setting resolution varies depending on the display record length.
Time period 2 (Time Range2) must be greater than or equal to Time period 1 (Time Range1).
The maximum number of data points that are measured is 100 Mpoint from Time Range 1.
Set the upper and lower limits of the search condition (−9.9999E+30 to 9.9999E+30).
Set the search logic (AND, OR).
Select the search parameter (Param1-Param4).
Set the search condition (OFF, IN, OUT).
Setting the Waveform to Search and the Parameter (Source)
2.
Press the Source soft key to display the following menu.
Set the source waveform (U1-U4, I1-I4, P1-P4, AUX3-AUX8).
Set the waveform parameter type. ► section 14.1
