SAVE Menu

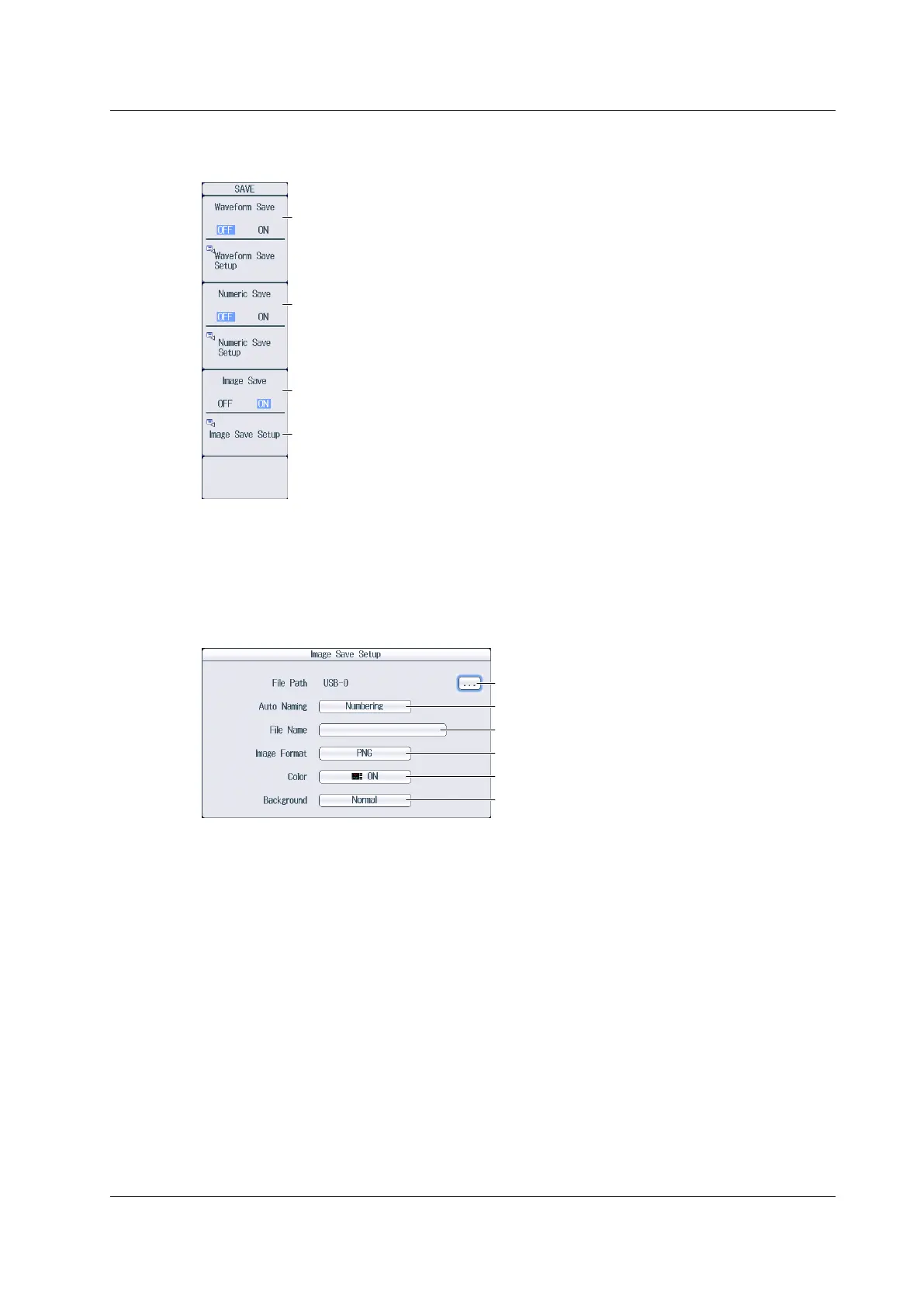

Press SHIFT+SAVE (MENU) to display the following menu.
Set the save destination and the file name for screen captures.
Set waveform data saving to OFF* ► section 22.3
Set numeric data saving to OFF* ► section 22.4
Turns the screen capture save feature on and off
* If the saving of waveform data and numeric data is turned on, the corresponding data will also be saved
according to the specified save destinations and file names. Here, the settings for saving only the screen
capture are shown.
Setting the Save Destination and the File Name of the Screen
Capture (Image Save Setup)
Press the Image Save Setup soft key to display the following screen.
Set auto naming. ► section 22.3
Set the file name. ► section 22.3
Set the data format (PNG, BMP, JPEG).
Set the color (ON, ON(Gray), ON(Reverse), OFF).
Sets the background to opaque (Normal) or
transparent (Transparent)*
Displays the file list ► section 22.10
* This appears when the data format is set to PNG.
When the data format is set to JPEG, the frame on/off setting appears.
Starting to Save
Press SAVE to save the screen capture file to the specified folder.
21.3 Saving Screen Captures to Files
