YOKOGAWA PX8000 User Manual

22-8
IM PX8000-02EN
Setting Auto Naming (Auto Naming)
OFF: The auto naming feature is disabled. The name that you specify using the File Name
setting is used. If there is a file with the same name in the save destination folder, you
cannot save the data.
Numbering: The PX8000 automatically adds a four-digit number between 0000 to 9999 after the
common name specified using the File Name setting (up to four characters) when it
saves files.
Date: The file name is the date and time (down to ms) when the file is saved. The file name
specified for the File Name setting is ignored.
Year
Month
Day
Hour
Minute
Second
ms
20131030_121530_100_000 (2013/10/30 12:15:30.100)
Numbering when a single file
exceeds 2 GB (000-999)
Regardless of whether the auto naming feature is set to OFF, Numbering, or Date, if the data size
of a single file exceeds 2 GB, an underscore and a three-digit sequence number (000 to 999) is
appended to the file name. The sequence number is incremented by one each time a file is added.
This is appended only if the file exceeds 2 GB.
Setting the Comment (Comment)
You can add a comment that consists of up to 120 characters when you save a file. You do not have
to enter a comment. All characters, including spaces, can be used in comments.

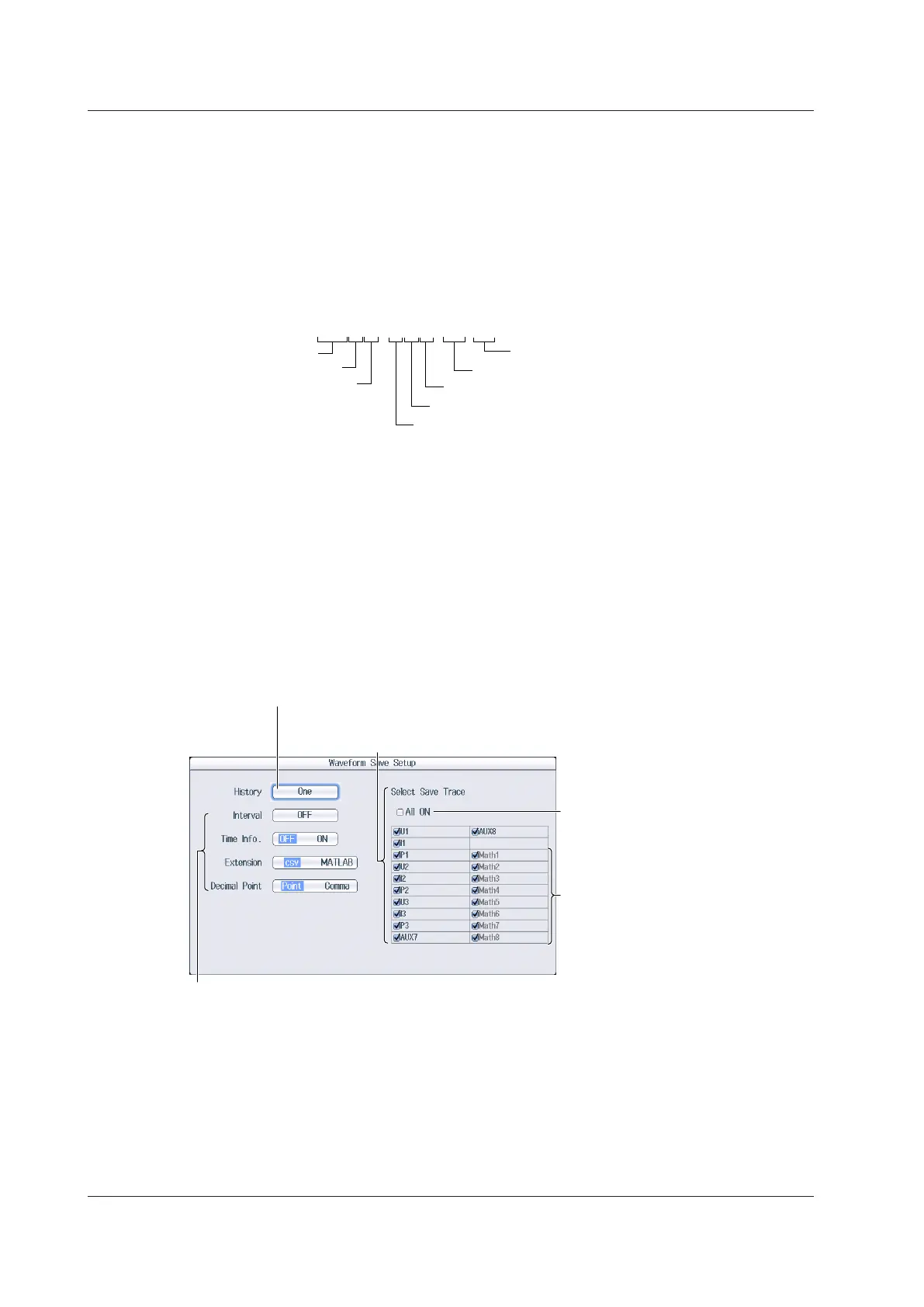

Setting the Waveform Save Conditions (Waveform Save Setup)
Press the Waveform Save Setup soft key to display the following screen.
Set these when Data Type is set to ASCII.
Interval (data removal interval): OFF, Per5, Per10, Per20, Per50, Per100, Per200, Per500,
Per1000, Per2000, Per5000
Time Info. (whether to save time information): OFF, ON
Extension (file name extension): csv, MATLAB*
Decimal Point (decimal point): Point, Comma
* If MATLAB is selected, the extension will be set to .TXT.
Select the waveforms that you want to save.
History data range of the waveforms to be saved (One, All)
Select All ON.
All displayed waveforms are saved
regardless of whether the individual
waveforms in the table below are
selected.
Math1 to Math8
Set these when Data Type is set to
ASCII or Float. These do not appear for
Binary or WDF Binary.
Set this when Data Type is set to Binary, ASCII, or FLOAT.
This is fixed to One for WDF Binary.
22.3 Saving Waveform Data
