SAVE Menu

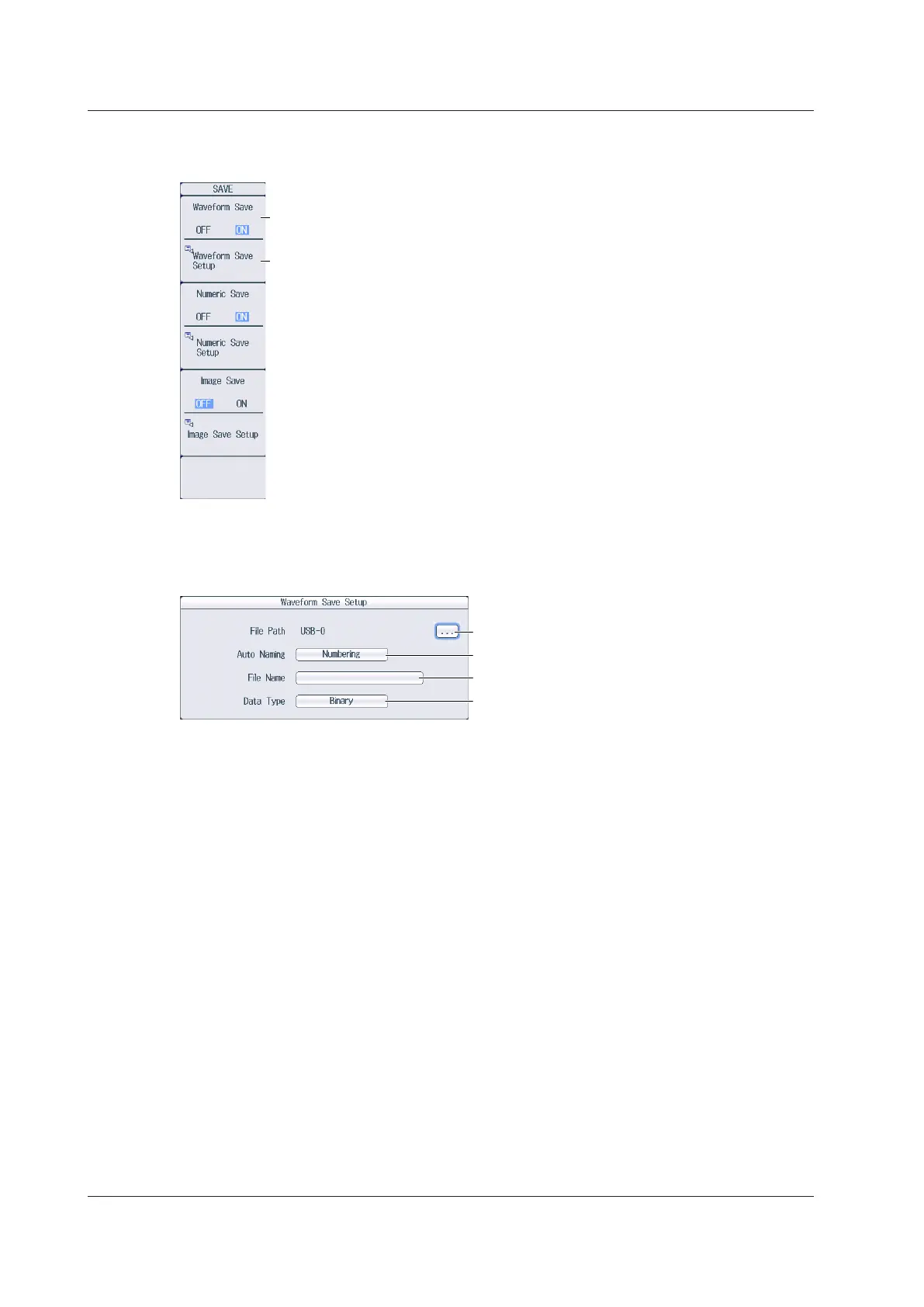

Press SHIFT+SAVE (MENU) to display the following menu.
Set the save destination, file name, and data type for waveform data.
Set waveform data saving to ON.
Setting the Save Destination, File Name, and Data Type for
Waveform Data (Data Save Setup)
Press the Waveform Save Setup soft key to display the following screen.
Displays the file list ► section 22.10
Set the auto naming method (OFF, Numbering, Date).
Set the file name.
Set the data format (Binary, ASCII, Float, WDF Binary).
Starting to Save
Press SAVE to save the waveform data file to the specified folder.
If Numeric Save or Image Save on the SAVE menu is set to ON, the numeric data or screen capture data
will also be saved.
Save Destination for Action Execution
In the specified drive, a folder is automatically created with the date (year, month, and day) as its
name, and data is saved to files in that folder using names that are specified by the auto naming
feature.
If the number of files in the save destination folder exceeds 1000, a new folder is automatically created
with the date and an incremented sequence number (000 to 999) as its name, and the data continues
to be saved in the new folder.
22.3 Saving Waveform Data
