External Current Sensor Input Measurement Range Settings
(When Ext Sensor is set to ON)
When the External Current Sensor Range Display Format (see section 1.1) Is Direct
Turn the RANGE knob to set the current measurement range.
• Select from 50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V, and 10V.
• Auto Range in the I menu is set to OFF.
• If you turn the RANGE knob when waveform acquisition is stopped, two values are shown on the
measurement range screen. The upper value is the measurement range for the displayed waveforms.
The lower value is the measurement range that you have specified. The new range will be applied the
next time waveform acquisition is started.
• If you do not operate the RANGE knob for approximately 3 seconds, the measurement range that you
are setting with the knob will disappear from the screen.

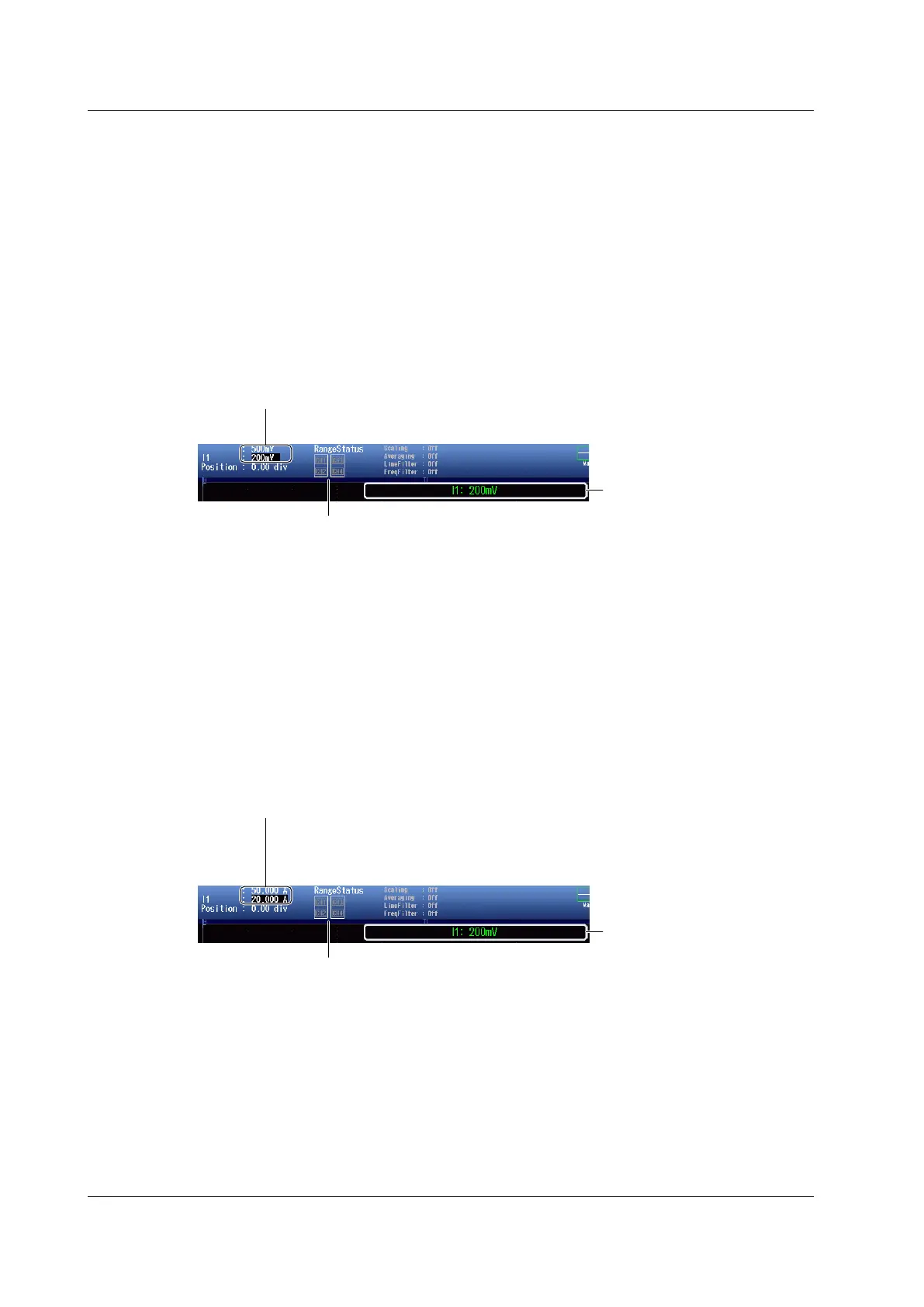

When the displayed waveform’s measurement range and the measurement range that you
have set are the same, only the bottom row is displayed.
Top row: Measurement range for the displayed waveforms
Bottom row: Measurement range that you have specified
Use the RANGE knob to display
the measurement range that is
currently being set.
Range status
See page 2-5.
When the External Current Sensor Range Display Format (see section 1.1) Is
Measure
Turn the RANGE knob to set the current measurement range.
• Select from 50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V, and 10V.
• Auto Range in the I menu is set to OFF.
• If you turn the RANGE knob when waveform acquisition is stopped, two values are shown on the
measurement range screen. The upper value is the measurement range for the displayed waveforms.
The lower value is the measurement range that you have specified. The new range will be applied the
next time waveform acquisition is started.
• If you do not operate the RANGE knob for approximately 3 seconds, the measurement range that you
are setting with the knob will disappear from the screen.
• The measurement range is set to the value that results when the measurement range set with
the RANGE knob is divided by the external current sensor conversion ratio (see page 2-4).
• When the displayed waveform’s measurement range and the measurement range that you
have set are the same, only the bottom row is displayed.
Top row: Measurement range for the displayed waveforms
Bottom row: Measurement range that you have specified
Use the RANGE knob to display
the measurement range that is
currently being set.
Range status
See page 2-5.
2.2 Configuring Current Measurements
