6-12
IM PX8000-02EN
Loading Display Configuration and Background Files at the Same
Time (Load Items & Bmp)

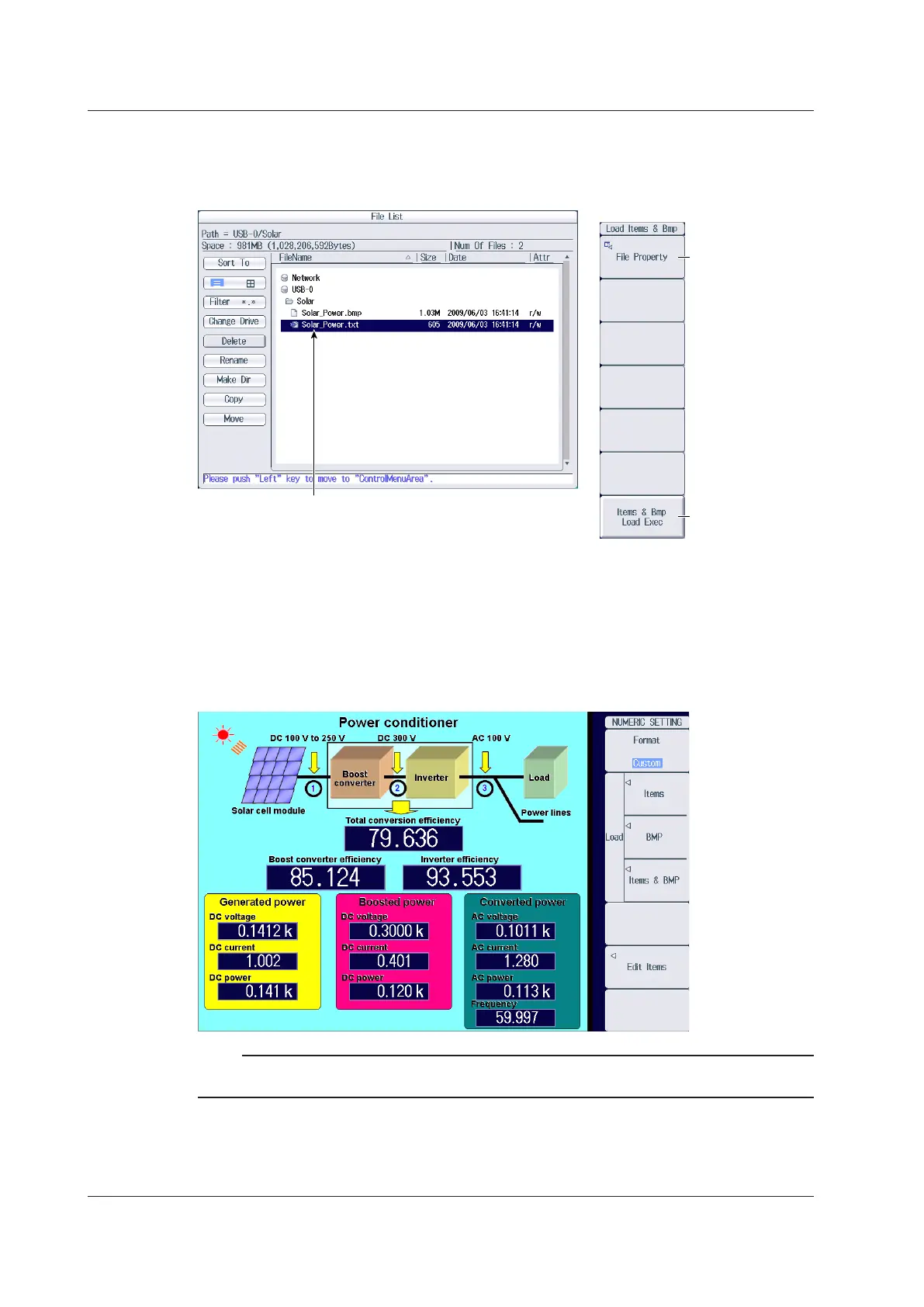

On the NUMERIC SETTING menu on page 6-10, click the Items & Bmp soft key to display the
following screen.
Starts loading
Displays file
information
Select the file to load.
Select a custom display file.
Display configuration files: TXT format
Background file: BMP format
To load both a display configuration file and background file at the same time, load
the display configuration file.
However, an error will occur if a background file that has the same name as the
display configuration file is not present in the save destination folder of the display
configuration file.
For the operating procedure, see section 22.10.
Example of Loading a File for the Custom Display
Note
After you properly load a display configuration file and a background file, if you restart the PX8000 and the
same background file is not in the same location, the background will return to its default.
Switching the Page
You can switch between pages when the display is set so that the total number of displayed items is
more than the number of items that can be displayed on one page. For details on how to switch pages,
see section 6.1.
6.6 Setting the Custom Display
To Next Page
