Setting Apparent Power, Reactive Power, and Corrected Power
Equations (Formula)

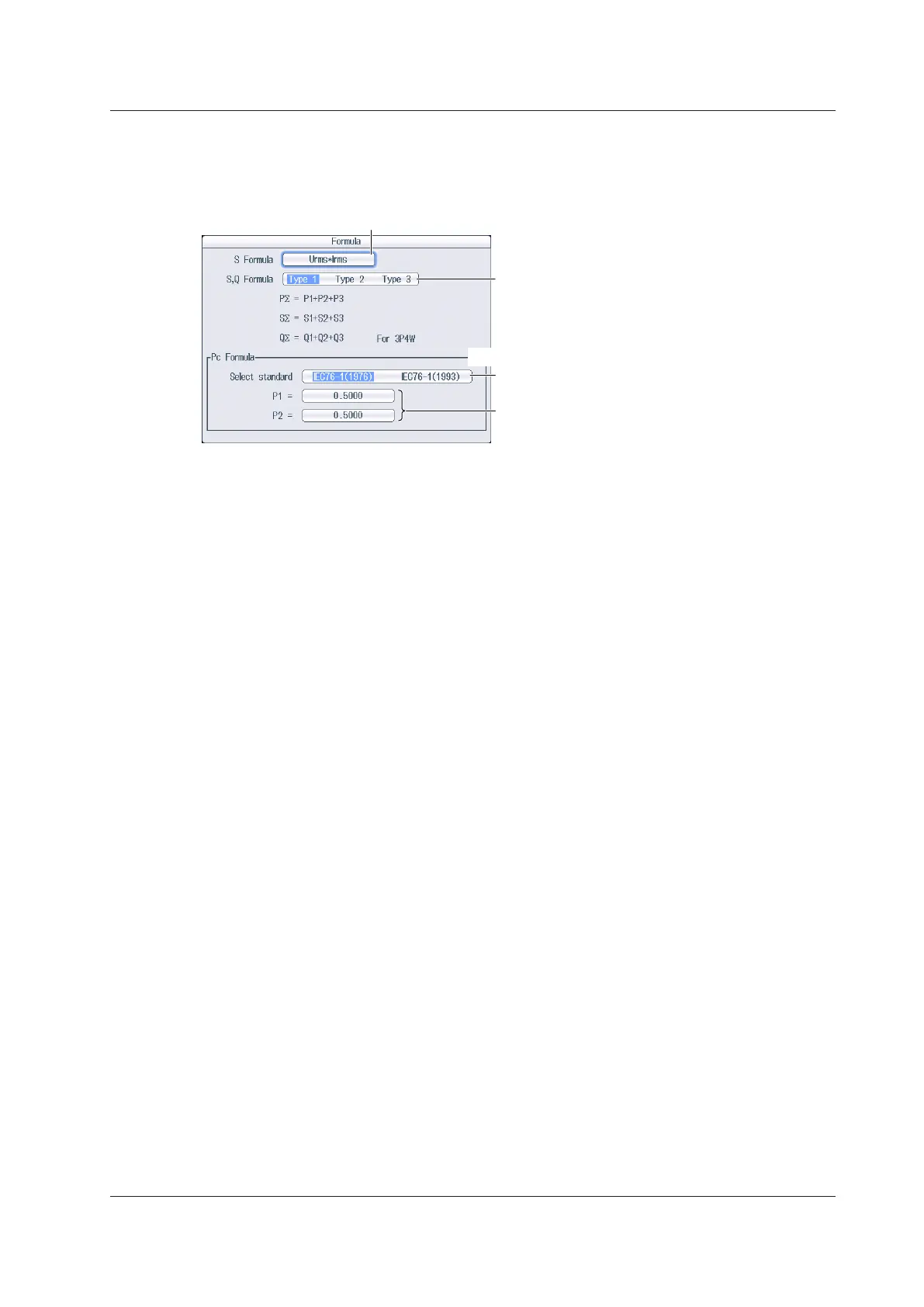

Press the Formula soft key to display the following screen.
Set the applicable standard
(IEC76-1(1976), IEC76-1(1993)).
Set the coefficients (0.0001-9.9999).
When Select standard is IEC76-1(1976), set
coefficients P1 and P2.
Set the apparent power equation
(Urms*Irms, Umean*Imean, Udc*Idc, Umean*Irms, Urmean*Irmean).
Set the apparent power and reactive power
computation types (Type 1, Type 2, Type 3
†
).
Corrected power equation
† These settings are available on models with the harmonic measurement (/G5) option.
7.5 Setting Apparent Power, Reactive Power, and Corrected Power Equations
