5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 105
5.5 Procedures
5.5.1 Printhead Assembly
Step 1. Turn the printer off, and disconnect the power cord.
Step 2. Press the access button in, and raise the Lid.

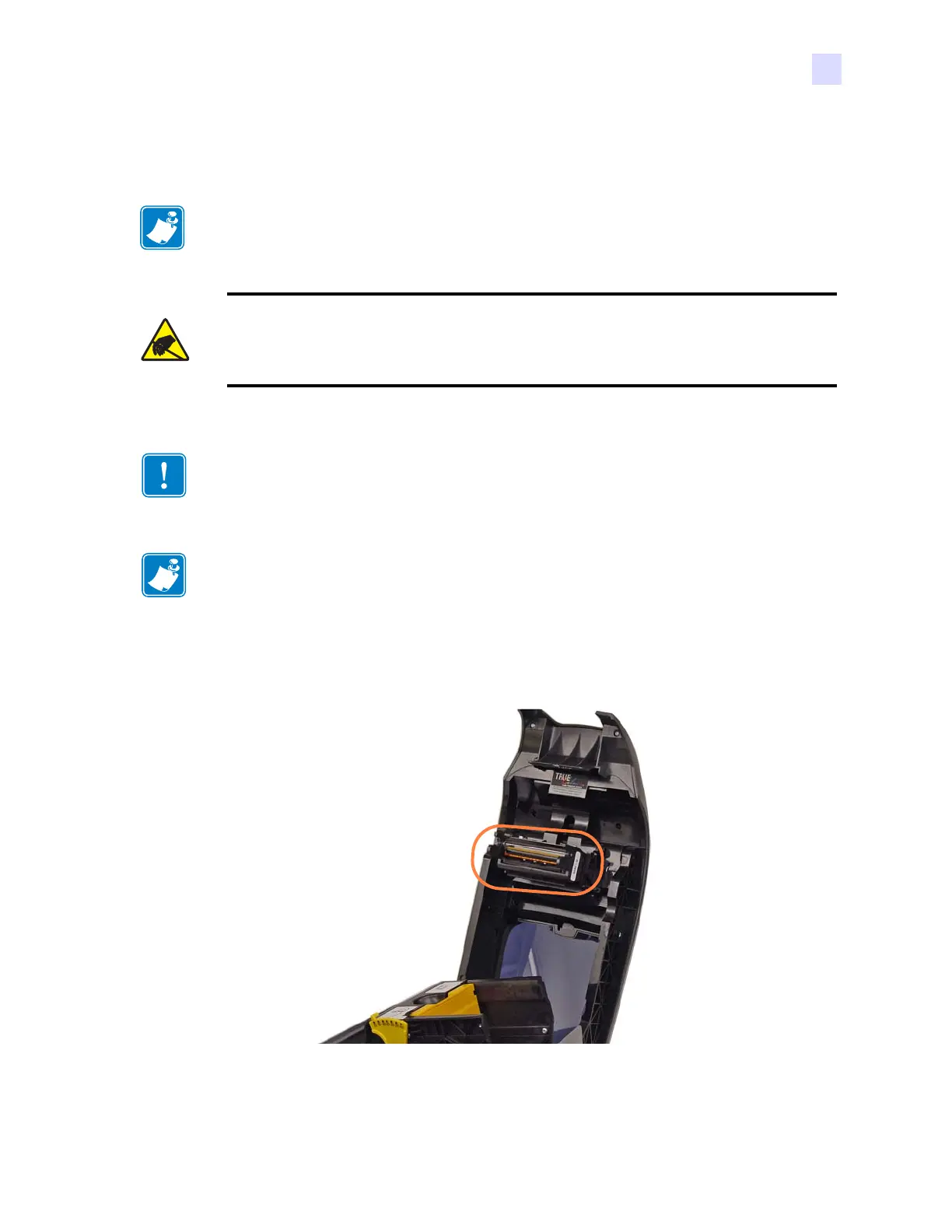

Step 3. Locate the Printhead Assembly (circled above).
NOTE • Refer to Appendix Mfor ordering the correct printhead replacement kit.
Electrostatic Discharge Caution • The Printhead is extremely susceptible to
Electrostatic Discharge (ESD) damage. Do not touch the bottom surface of the Printhead.
The replacement must be performed at a static-free work station, an anti-static wrist strap
must be worn and properly terminated, or other appropriate protection must be used.
Important • This procedure describes replacing the Printhead Assembly. The Printhead
Assembly is supplied with components in correct alignment with each other. These
alignments are critical to proper operation of the printer. Do not deviate from the procedure
given here, do not loosen or tighten any screws except those specifically noted in this
procedure, and do not attempt to adjust any part of the Printhead Assembly.
NOTE • The Printhead Assembly can be replaced without removing any other parts of
the printer.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
