Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Installing the Windows Printer Driver
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 35
2.7.4 Setting Up Printer Pooling
Printer Pooling is a standard feature of Windows, which lets you spread the printed output
across a pool of several printers. In this example, we will install and setup the three network
printers to be used for pooling.
Step 1. Before proceeding to pool the printers, test them individually, and be sure they are
configured similarly. Specifically, check the following:
• Ribbon panel configuration (ribbon type, and what prints on which side of
the card).
• Mag encoding configuration.
• Black extraction configuration (if applicable).

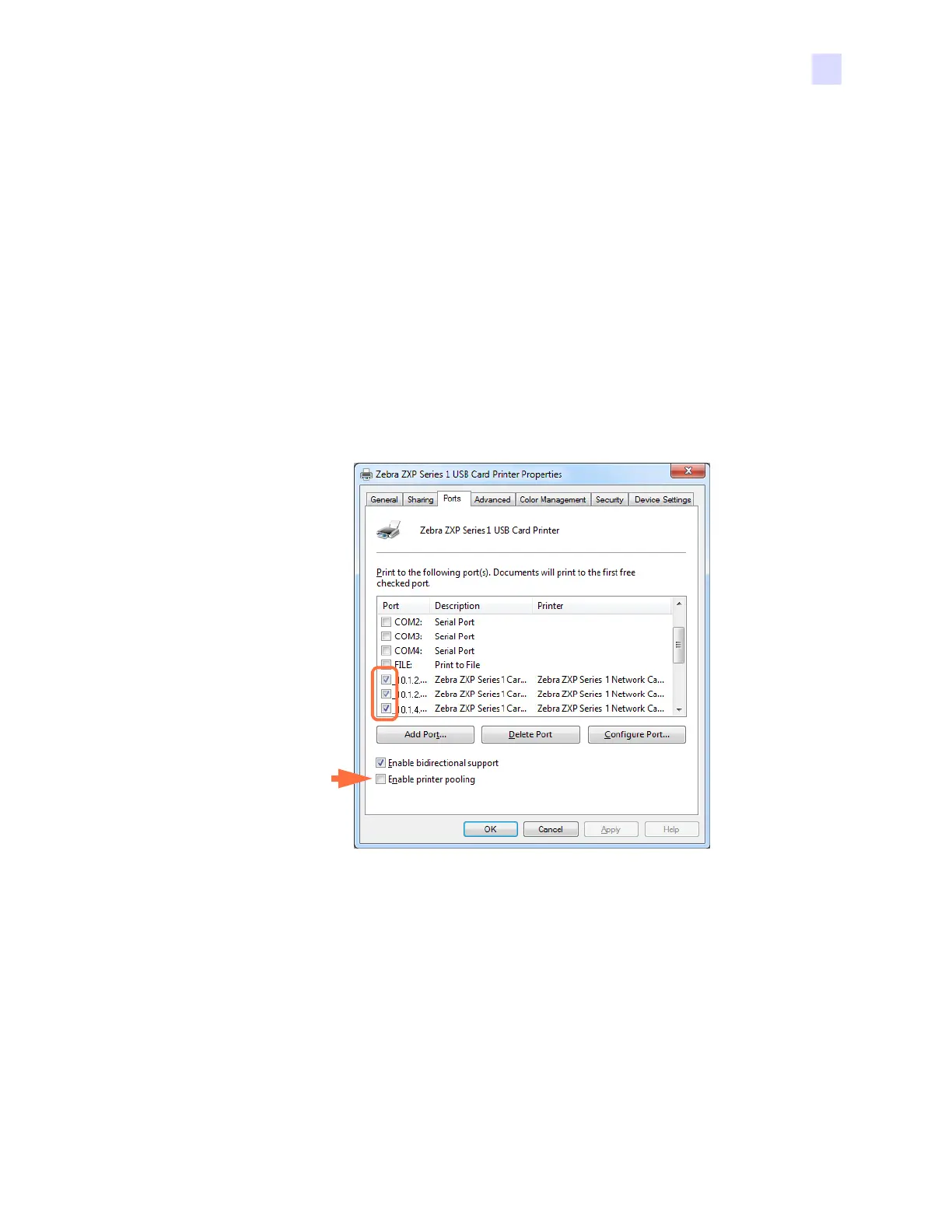

Step 2. Access the Ports Tab.
Step 3. Select the three network printers by selecting the associated check box (circle above).
Step 4. Select the Enable printer pooling check box (arrow above).
Step 5. Click the Apply button, then click the OK button.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
