142 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.21 Front Bezel

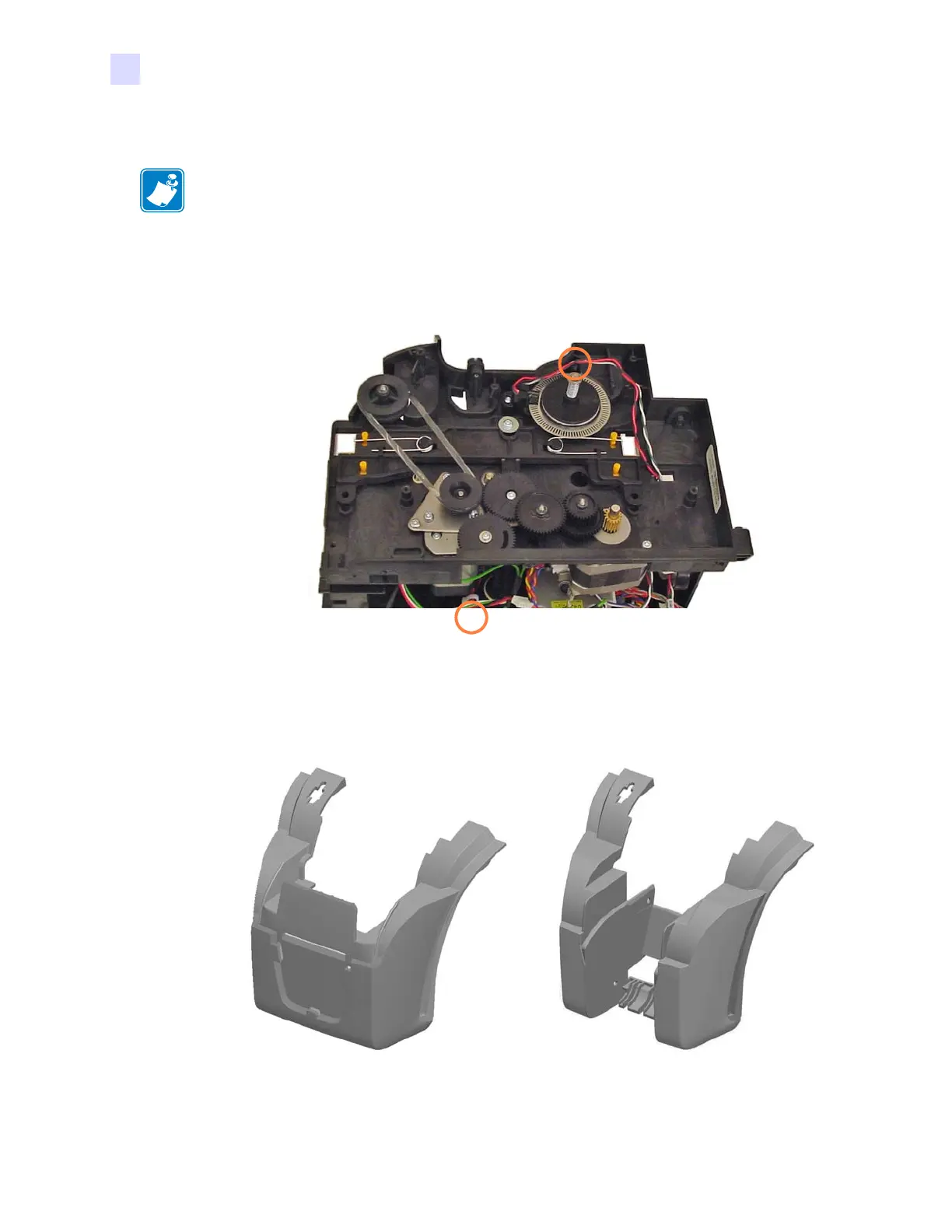

Step 1. With a TORX T10 driver, remove the four screws (SCR 4-.25L, 4.0 in-lb), two
per side, holding the Front Bezel to the Frame; the two right-side screws are
circled below.
Step 2. Remove the Front Bezel.
NOTE • This procedure uses Spare Kit # P1031925-243: KIT, SIDE PANELS BEZELS.
ENCODE FRONT BEZEL NON-ENCODE FRONT BEZEL
