Appendix L
Printhead Maintenance
Introduction
The printhead is the most critical component in your printer, and possibly the most delicate.
It is a consumable item which will eventually wear over time; however, with ongoing careful
attention and maintenance, you can extend the life of the printhead.

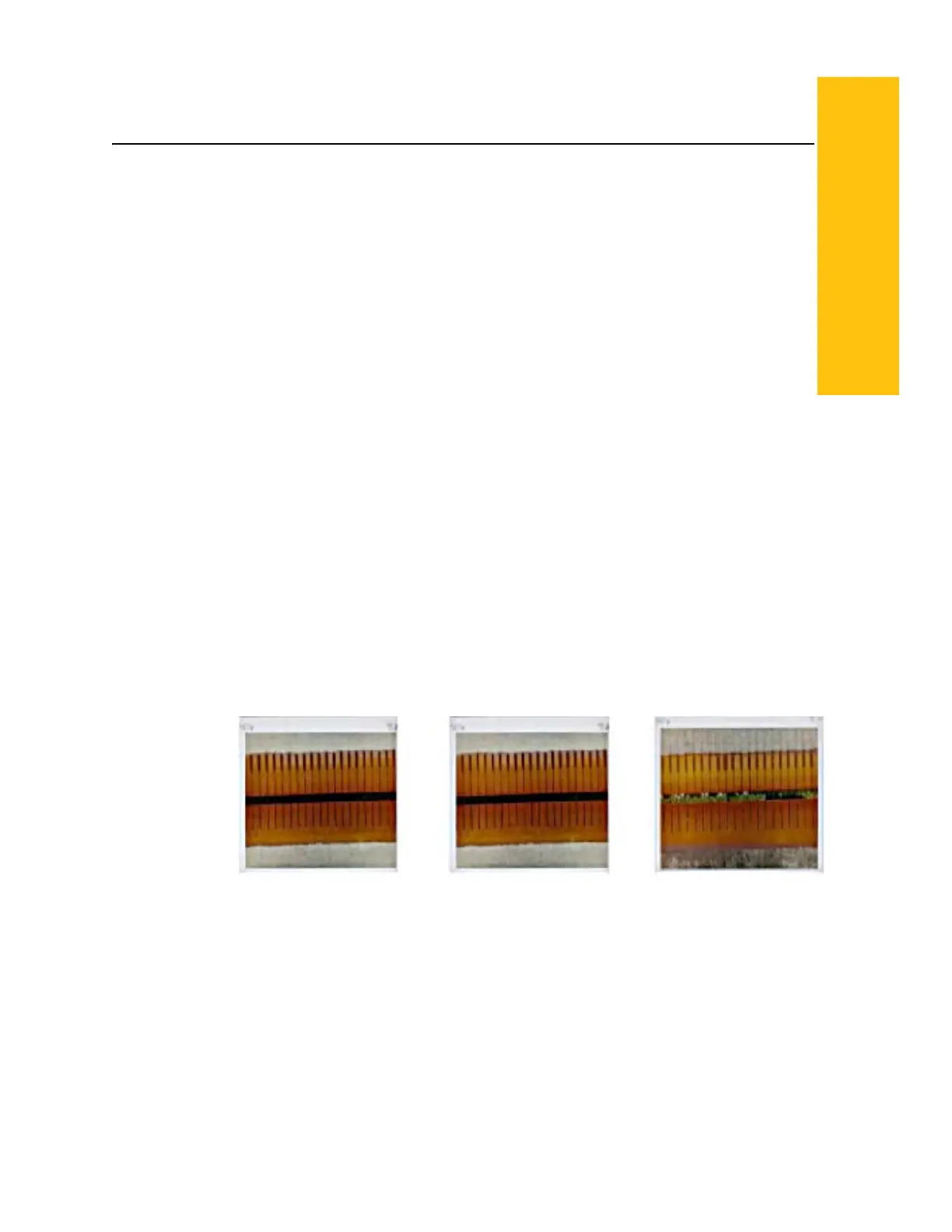

Below are photographs of three printheads. The first printhead is brand new. The second has
printed over 1 million linear inches of thermal transfer cards and has been properly
maintained. The third printhead has printed far fewer cards, but without proper care and
maintenance—signs of abrasion and contamination build-up are evident.
For optimum performance, clean the printhead every 5,000 panels or when print anomalies
persist. Take care when handling or cleaning the printhead by removing any jewelry that may
scratch the printhead, and use a grounding strap or anti-static mat to discharge static electricity
that could damage the printhead.
New Over 1 Million Inches
(Properly Maintained)
Less Than 1 Million Inches
(Without Proper Care)

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
