APPENDIX G
Half-Panel Ribbon
Operation
Introduction
Half-Panel YMCKO Color Ribbons are used if you do not need full color printing over the entire
Half-Panel YMCKO Color Ribbons are used if you do not need full color printing over the
entire surface of a card. These ribbons have half panels of YMC for ID pictures, logos, etc.,
for printing a 38mm wide window on the front of the card. The remaining panels are
full-size black resin and clear overlay so black text and protection can be applied over the
entire surface of the card. The position of the half panel is adjustable.
The command is HALF p1 where p1 sets the start position of the print window. The position
of the window is with respect to the leading edge of the card; i.e., the edge of card which exits
the printer first. To reset the driver, the command is simply HALF without the p1 parameter.
Parameters p1 ranges from -38 to 1024. Values below 0 will move the window off the leading
edge of the card, and values over 568 will move the window off the trailing edge of the card.
Note that 12 points = 1mm.

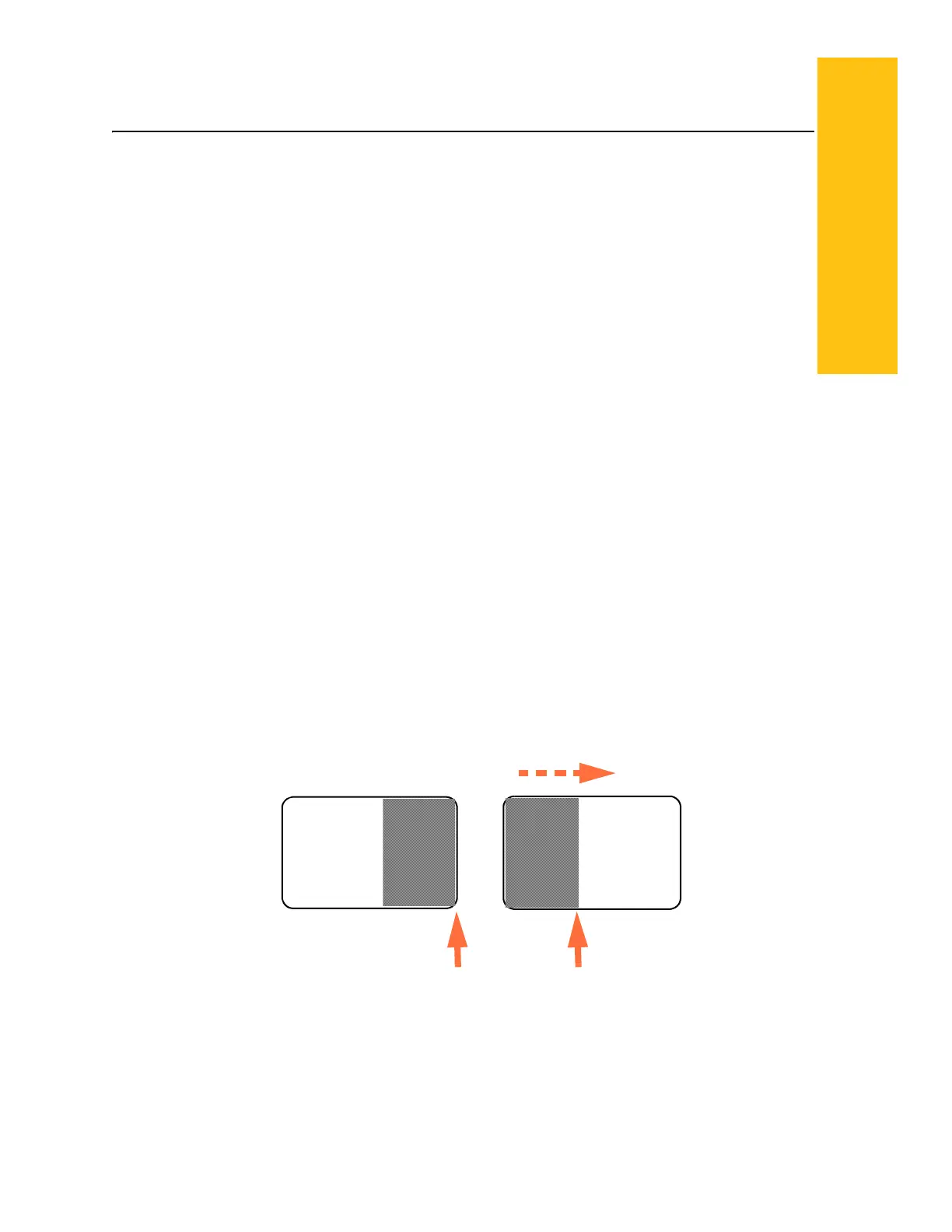

HALF 568
HALF 0
Leading-Edge
of the Card
DIRECTION OF PRINT
P1 = 0 P1 = 568
To Next Page
