Zebra ZXP Series 3 Service Manual

72 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
2: Installation and Setup
Printer Operation
2.12 Printer Operation
The ZXP Series 3 Card Printer can be used with your software application program, using the
Drivers on the CD provided with your Printer; refer to Installing the Windows Printer Driver
on page 21.
Creating a Sample Card
Before you begin a new printing session, print a sample card to ensure that the cards will be
printed correctly. Follow the steps below to print your first card using the True Colours
TM
Card
Printer Ribbon Cartridge.
Step 1. Open a new Microsoft Word document.
Step 2. If the Zebra Printer was not set as the default printer, select the ZXP Series 3 Card
Printer as the default.
Step 3. From the Microsoft Word document., set the Page Layout:
a. Size: CR-80, ISO 7810 format, 2.12 inch by 3.38 inch (54 mm by 86 mm) Card
b. Orientation: Portrait or Landscape
c. Margins: Top, Bottom, Left, and Right = 0 (zero).
Step 4. The card appears as a Microsoft Word document.

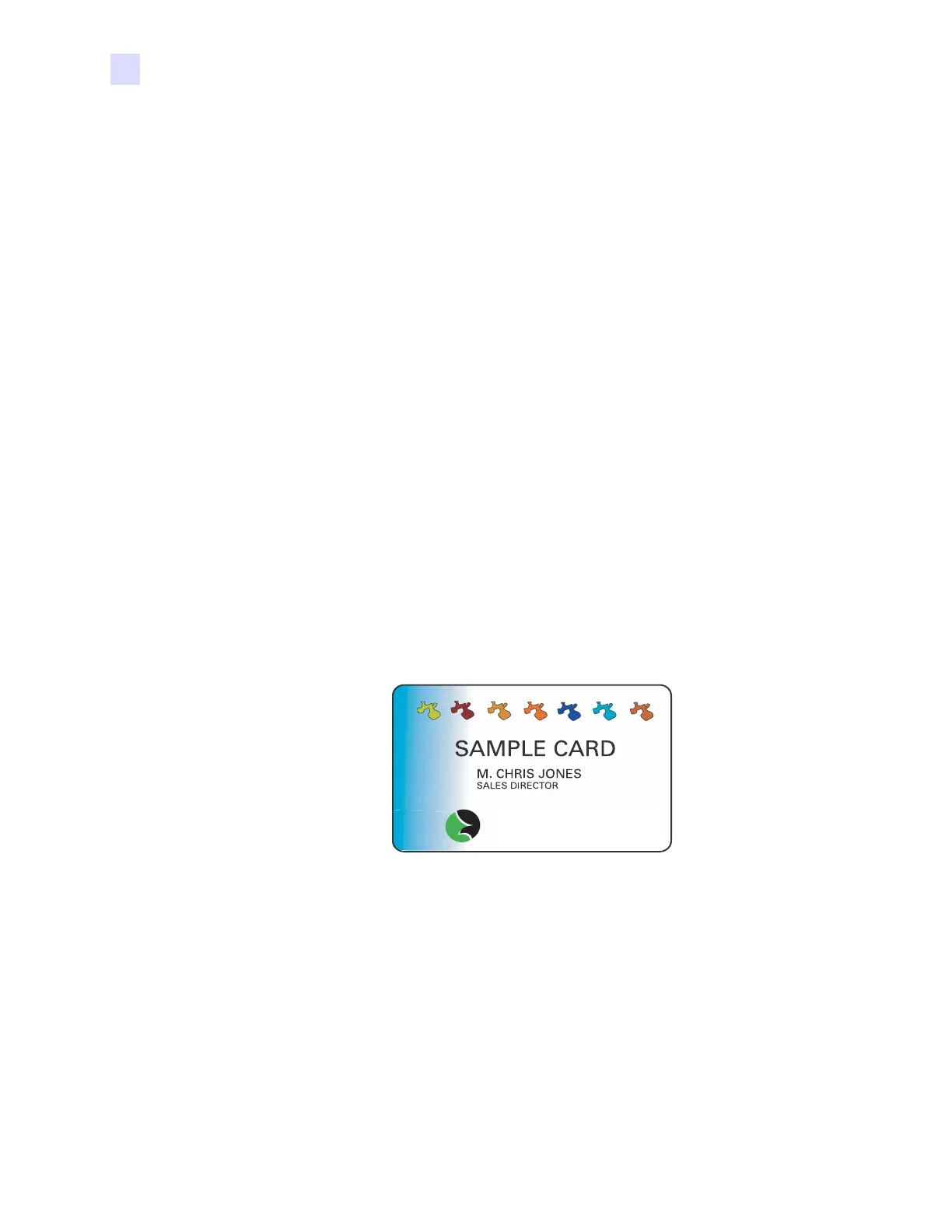

Step 5. Design a card with both black and colored text and with colored images similar to the
sample card shown below.
Printing the Sample Card
Once you complete creating your sample card, you are ready to print. Ensure your printer
has a True Colours
™
Card Printer Ribbon Cartridge installed and there is card stock in the card
feeder.
Step 1. Print your sample card.
Step 2. Once the printing is completed, remove the sample card from the card hopper and
check for any discrepancies. For quality issues, see Troubleshooting.
Step 3. If the sample card is correct, your printer is ready to produce more cards.
http://www.zebracard.com

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
