5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 187
5.5.44 Drive Roller Assembly

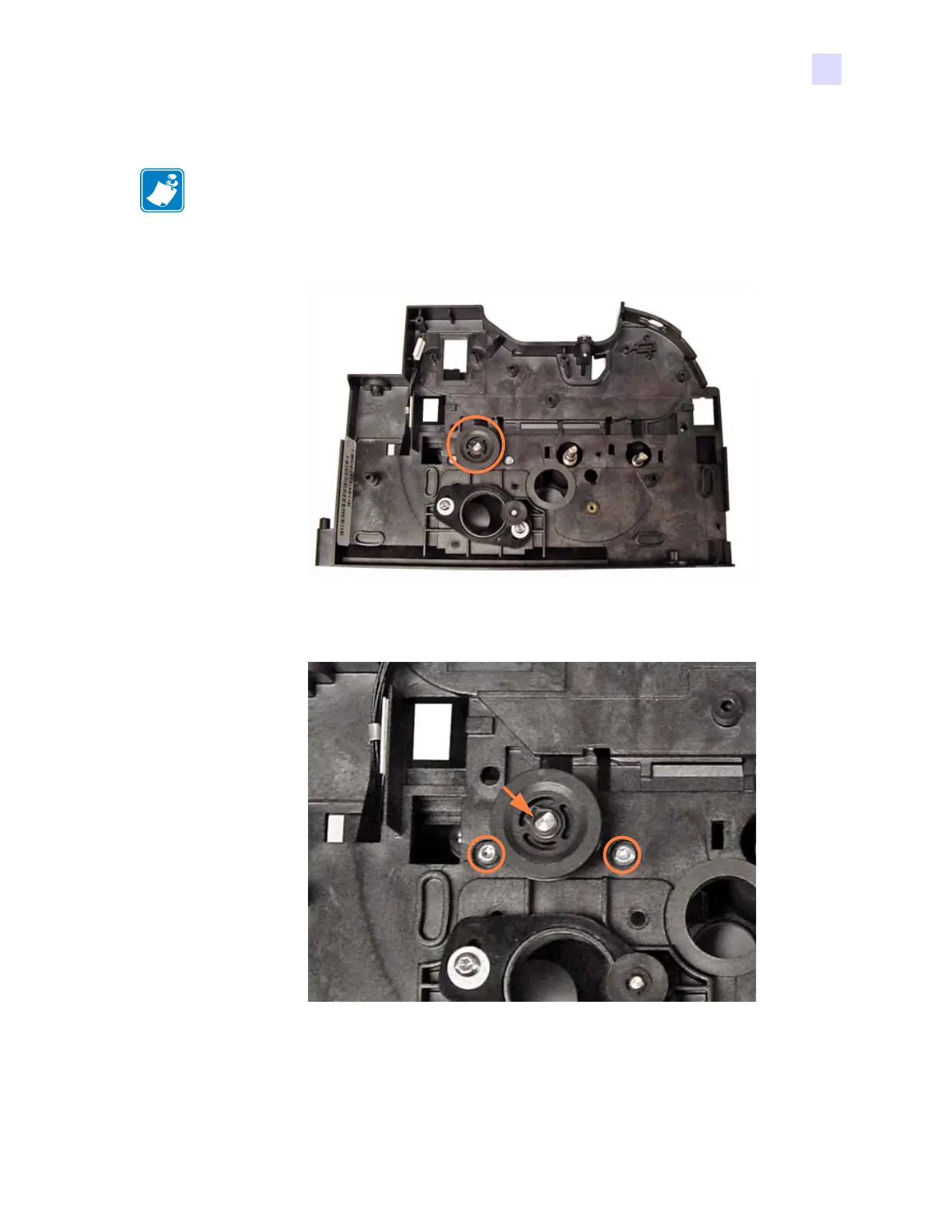

Step 1. Locate the Main Drive Roller (circled below).
Step 2. Remove the retaining clip (arrow below) and associated gear pulley.
Step 3. With a TORX T10 driver, remove the two screws (SCR 4-25L, 4.0 in-lb) holding the
side of the support collar to the frame.; circled above.
NOTE • This procedure uses Spare Kit # P1031925-228: KIT, PLATENS FOR PRINT ENG.
