122 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.8 LCDisplay PCBA

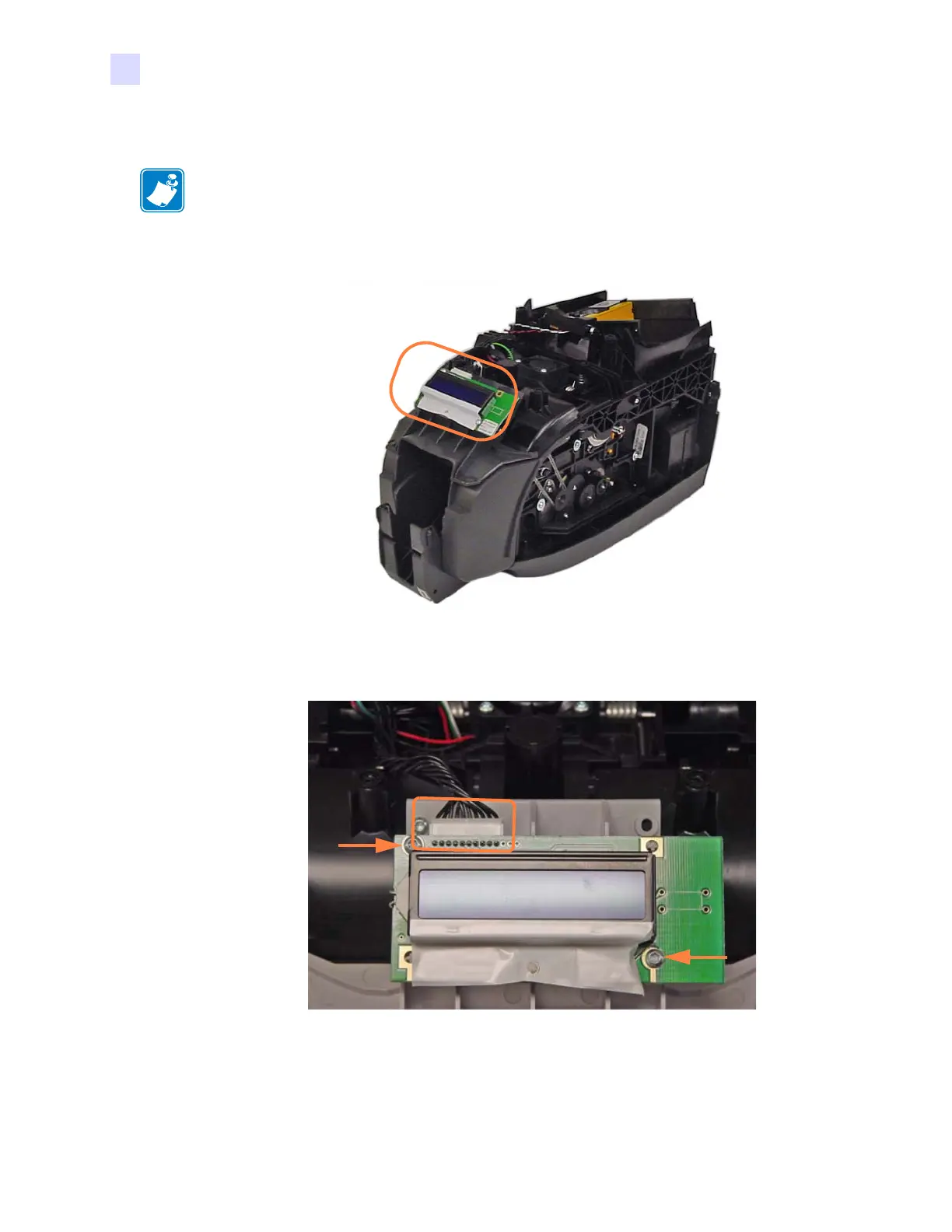

Step 1. Locate the LCD Display PCBA (circled below).
Step 2. Carefully remove the 10-wire plug (circled below) from the connector on the
LCD
Display
PCBA.
Step 3. With a TORX T10 driver, remove the two screws (SCR, PLAST, 4-.25L, 4.0 in-lb)
that hold the
LCD Display PCBA to the Frame; see arrows above.
Step 4. Remove the
LCD Display PCBA.
NOTE • This procedure uses Spare Kit # P1031925-010: KIT, LCDISPLAY PCBA.
