Zebra ZXP Series 3 - 5.5.39 Mag Sensor

180 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.39 Mag Sensor
Step 1. With the Mag Encoder Assembly removed (Mag Encoder Assembly - Head and
Sensor on page 178):

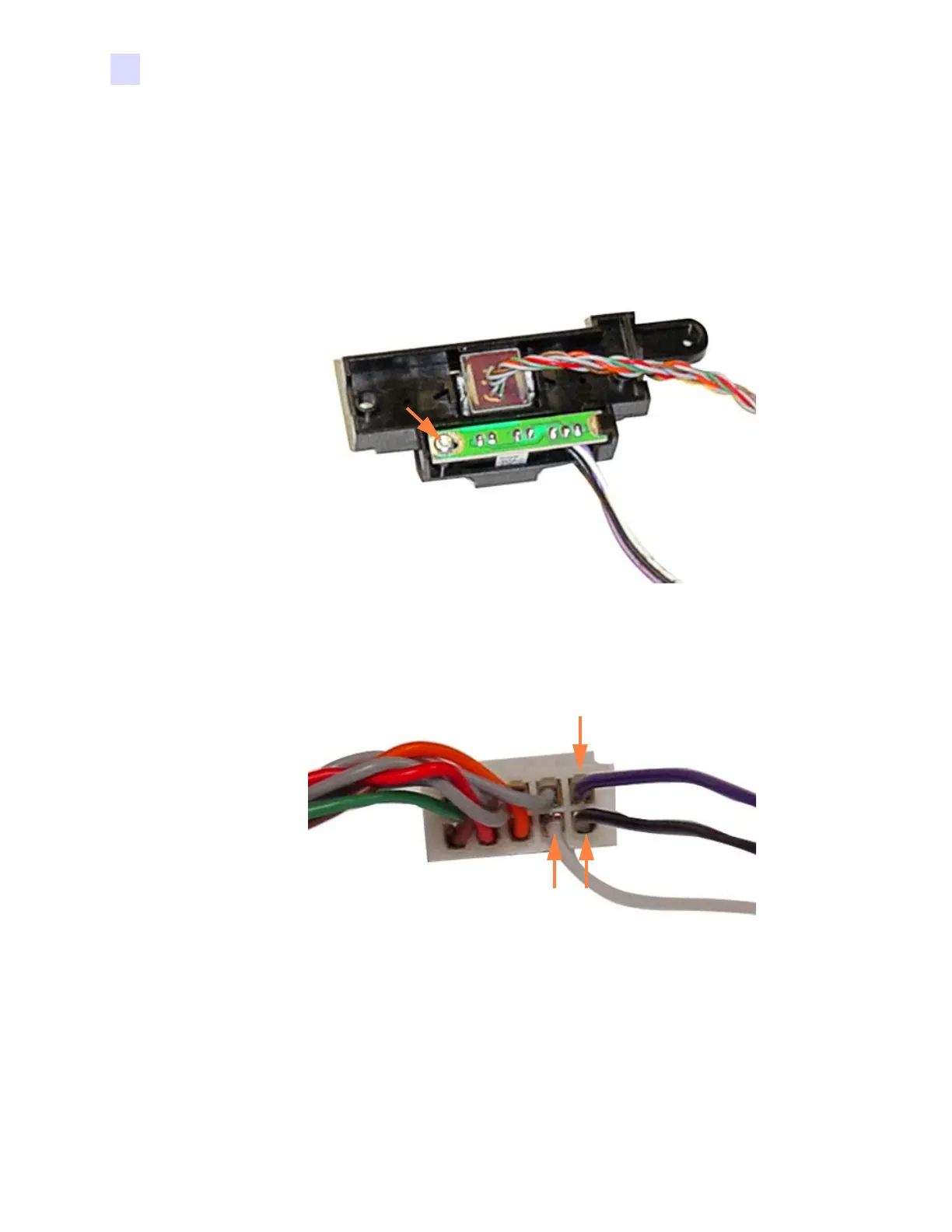

a. With a TORX 7 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb)
holding the Mag Sensor in place.
b. Disconnect the three sensor wires (arrows below) from the Mag
Encoder connector.
Step 2. Remove the Mag Sensor.
