Zebra ZXP Series 3 Service Manual

68 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
2: Installation and Setup
Loading Cards
2.10 Loading Cards
Card Feeder
The card feeder is used for loading cards, it can hold up to 100 cards of 30-mil thickness. The
card feeder is located under the card feeder cover of the printer
.Check with your card vendor
or packaging label to identify the thickness of your cards. A typical card thickness is 30 mil.

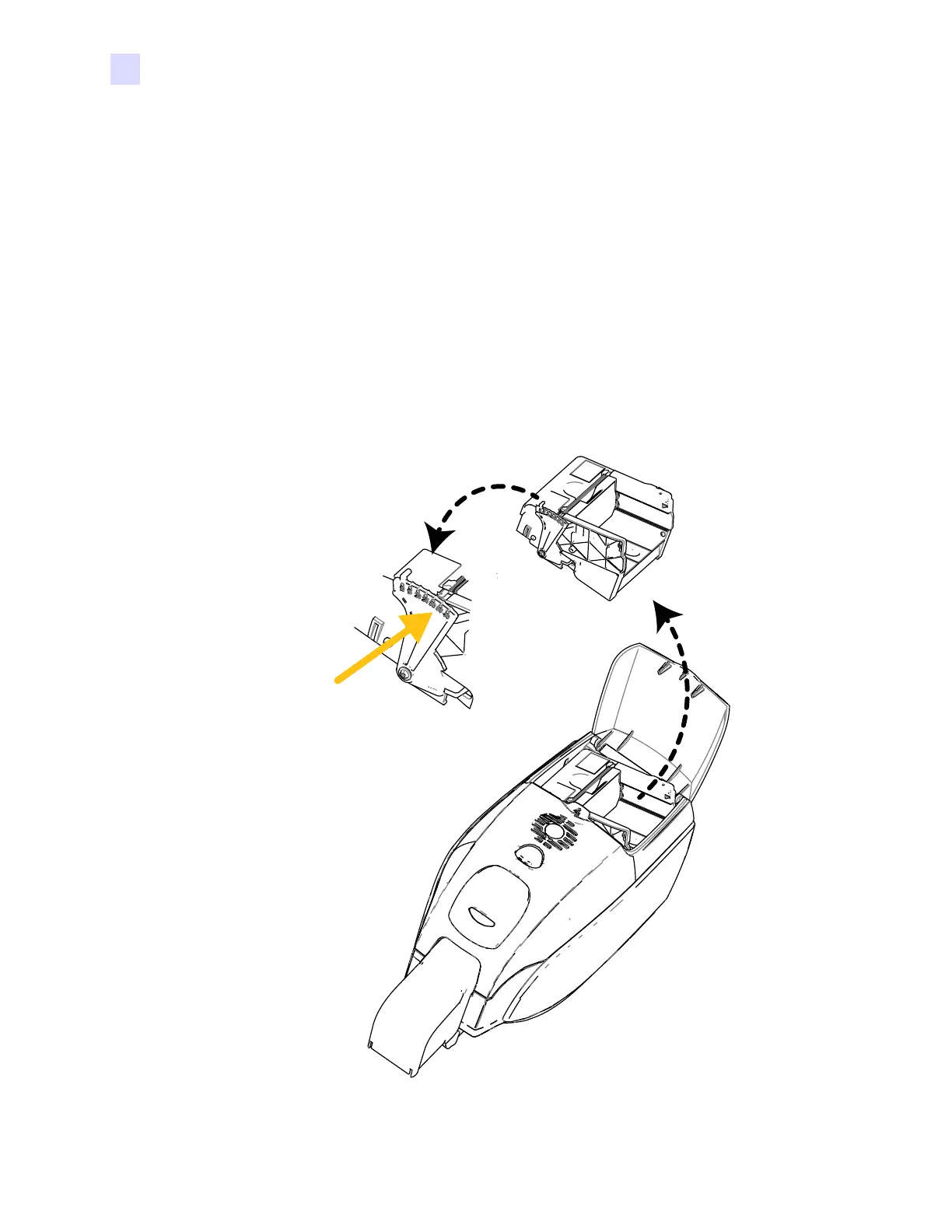

Step 1. Set the card thickness adjustment (arrow below) to the number corresponding to the
thickness of the cards being loaded. Note that the thickness adjustment ranges from
10 mils to 40 mils.
Failure to make the proper thickness adjustment (particularly for 10-mil cards)
may result in a multiple-card jam. To clear a card jam, refer to MECHANICAL
ERROR on page 89.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
