Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Loading Cards
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 69

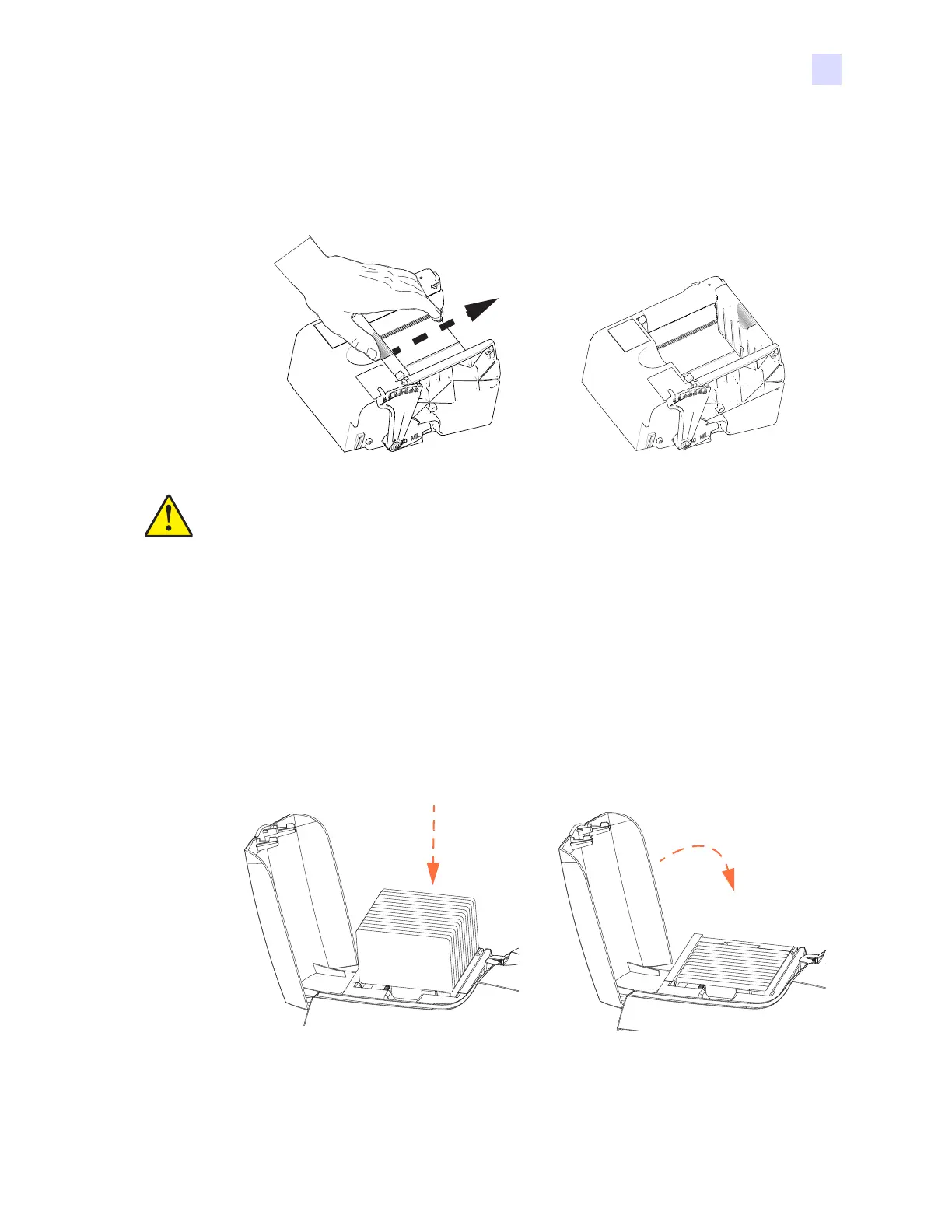

Step 2. Open the card feeder cover.
Step 3. Slide the card guide all the way to the right until it locks in place with an
audible click.
Step 4. Remove the wrapper from the card stack.
Step 5. Examine the cards, and discard any cards with damaged edges.
Step 6. Holding the card stack by its sides, fan the cards (like flexing a deck of playing
cards) at least once from each end, so as to separate all the cards.
Step 7. Restore the card stack to its original squared-off condition.
Step 8. Place the stack of cards into the card feeder. When loading magnetic stripe cards
or contact smart cards, see Appendix D or Appendix E respectively for proper
card orientation.
Step 9. Close the card feeder cover. When card feeder cover is closed, the card guide locking
mechanism will be released automatically.
Caution • Hold the cards by the edges only. DO NOT touch print surfaces as this can
reduce print quality.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
