Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Changing the Printer Driver Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 39

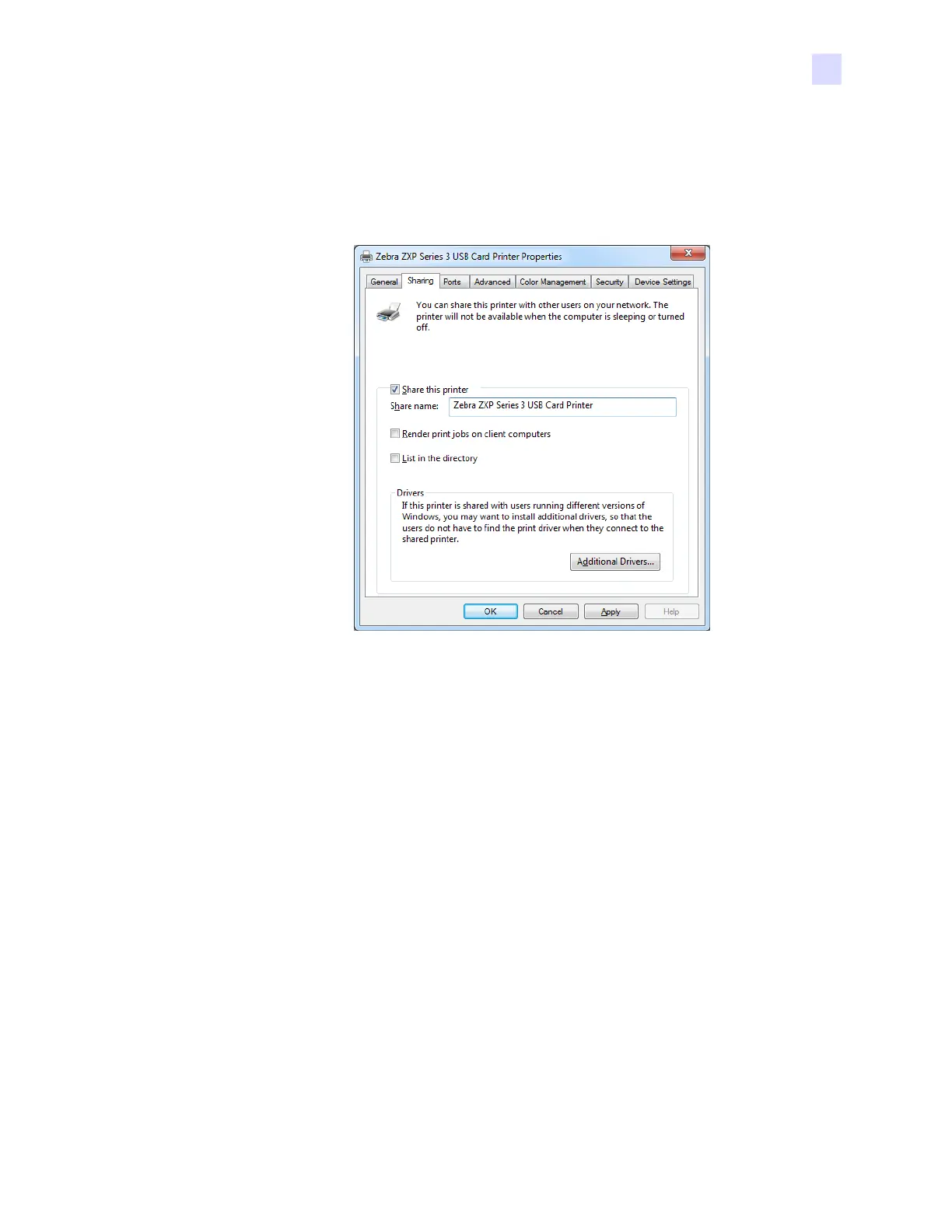

Sharing Tab
On the Sharing tab, you can choose to share the printer over the network and install additional
drivers to accommodate different operating systems. See Appendix B for the various printer
sharing options allowed and the configurations required.
Printer sharing tasks that you can perform include:
• To share a printer, select the Share this printer radio button; and specify a name for the
shared resource. Click OK when you're finished.
• To change the shared name, simply enter a new name in the Share name field; and
click OK.
• To quit sharing a printer, select the Do not share this printer radio button. Click OK
when you're finished.
Drivers: If this printer is shared with users running different versions of Windows, you may
want to install additional drivers, so that the users do not have to find the print driver when
they connect to the shared printer. Click on the Additional Drivers button.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
