Zebra ZXP Series 3 Service Manual

5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 153
5.5.29 Printhead Lift Motor

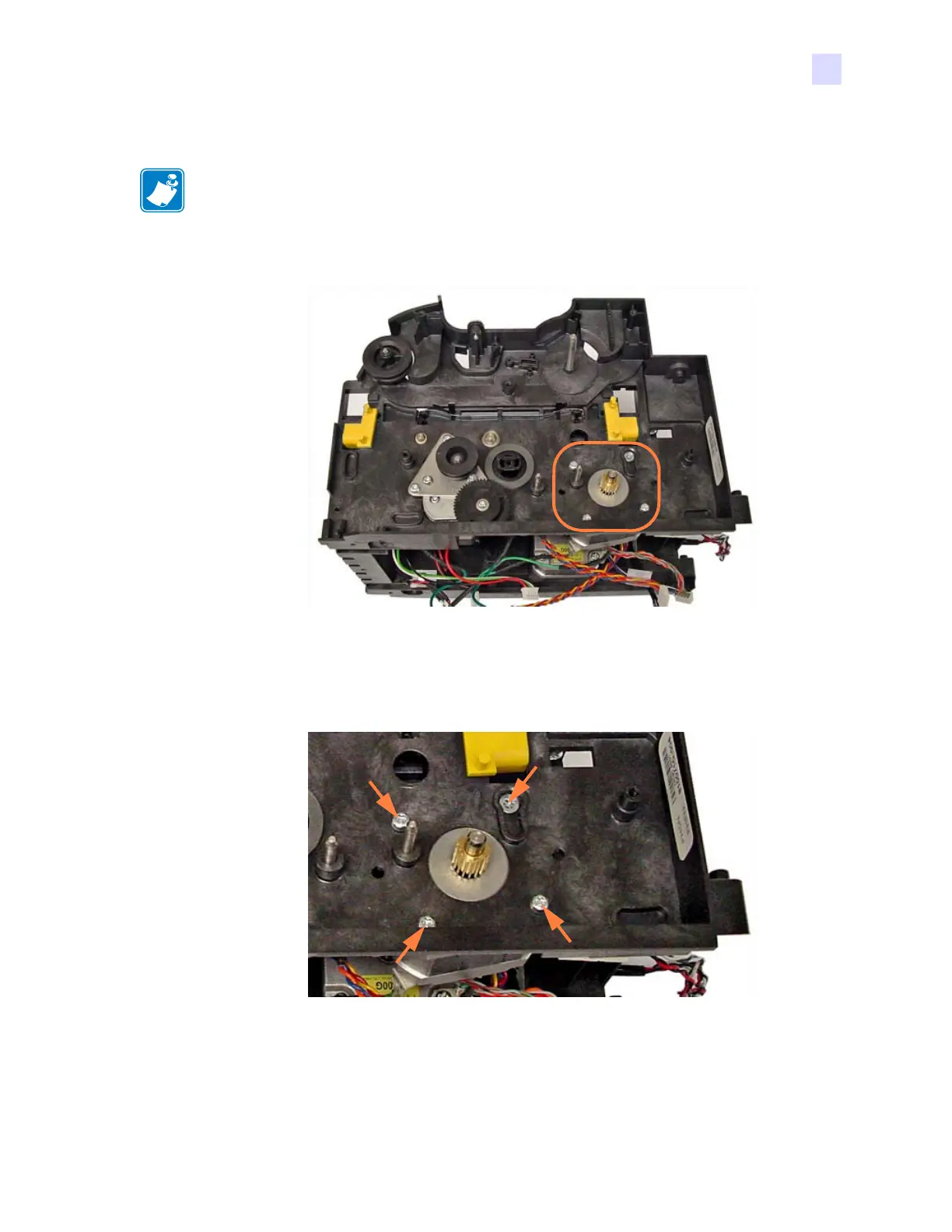

Step 1. Locate the Printhead Lift Motor. (circled below)
Step 2. Using a TORX T10 driver, remove the four screws (SCR M3x6, 5.5 in-lb) holding
the Printhead Lift Motor to the Frame; arrows below. Note the orientation of the
connector on the motor (facing the front of printer).
Step 3. If not already done, disconnect the Printhead Lift Motor plug from connector J26
on the Main
PCBA.
Step 4. Disconnect the ground wire, and remove the Printhead Lift Motor.
NOTE • This procedure uses Spare Kit # P1031925-018: KIT, MOTOR, HEAD LIFT.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
