Zebra ZXP Series 3 Service Manual

5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 125
5.5.11 Feeder Latch

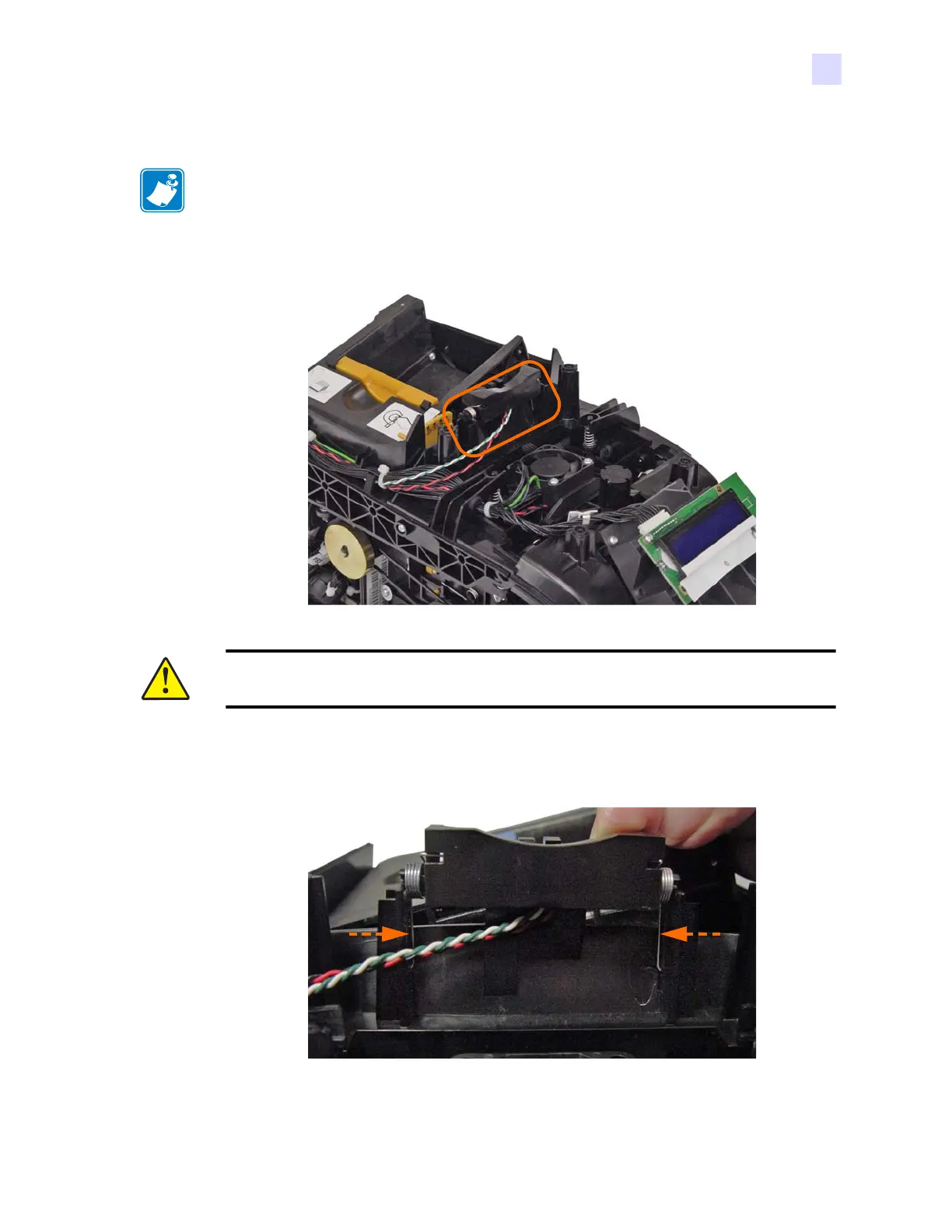

Step 1. With the Top Cover removed, locate the Feeder Latch (circled below).
Step 2. Carefully press in on the spring arms (arrows below), and unhook the two torsion
springs. This will free the Feeder Latch. Note the orientation of the torsion springs.
Step 3. Set the Feeder Latch aside.
NOTE • This procedure uses Spare Kit # P1031925-038: KIT, LATCH FOR FEEDER.
Caution • The pulling force of the torsion springs is very strong, therefore care must be
taken when removing and replacing them.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
