42 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

2: Installation and Setup

Changing the Printer Driver Options

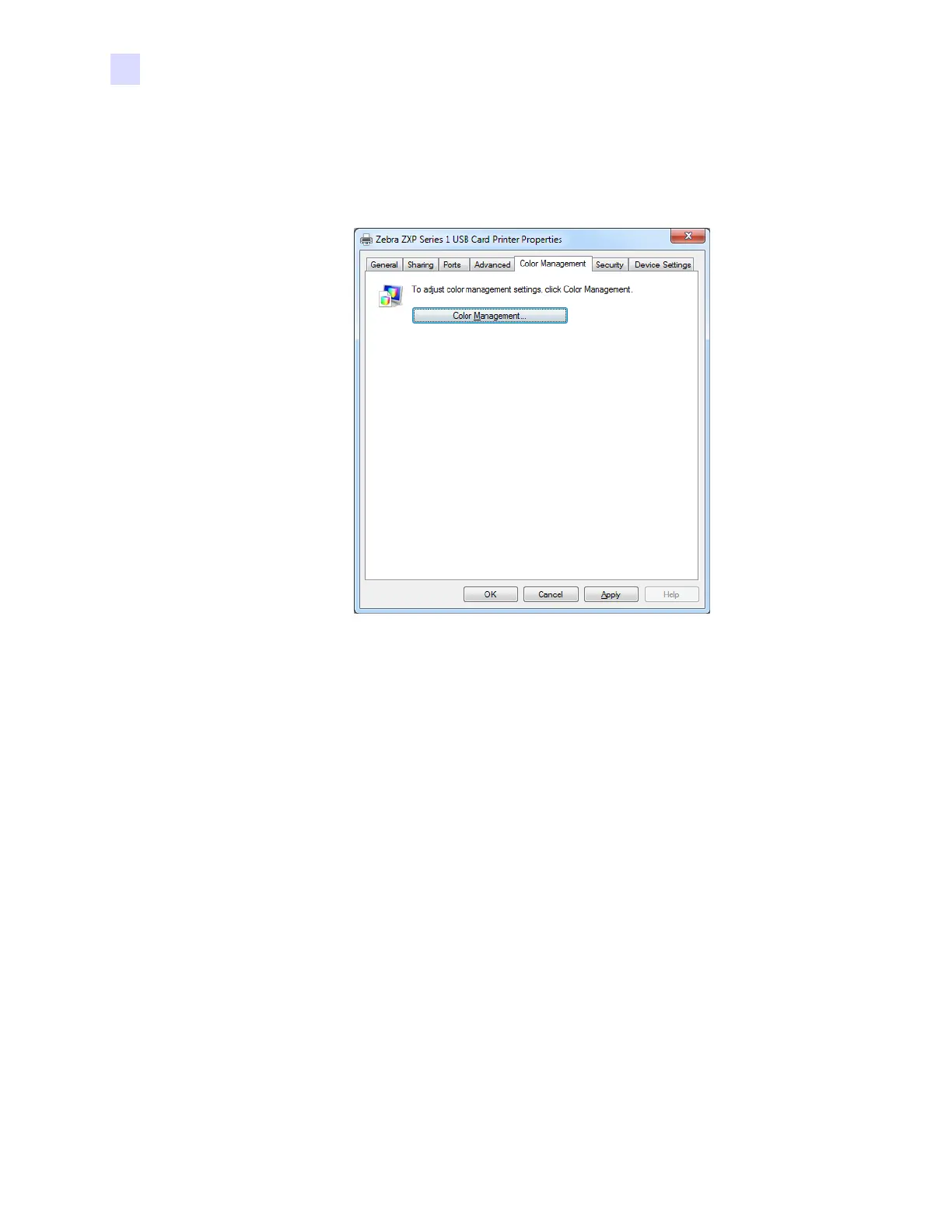

Color Management Tab

This is the standard Windows color management screen, showing user access to various

printer control options.
