Zebra ZXP Series 3 Service Manual

3: Theory of Operation
Card Path Elements
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 81
3.3 Card Path Elements

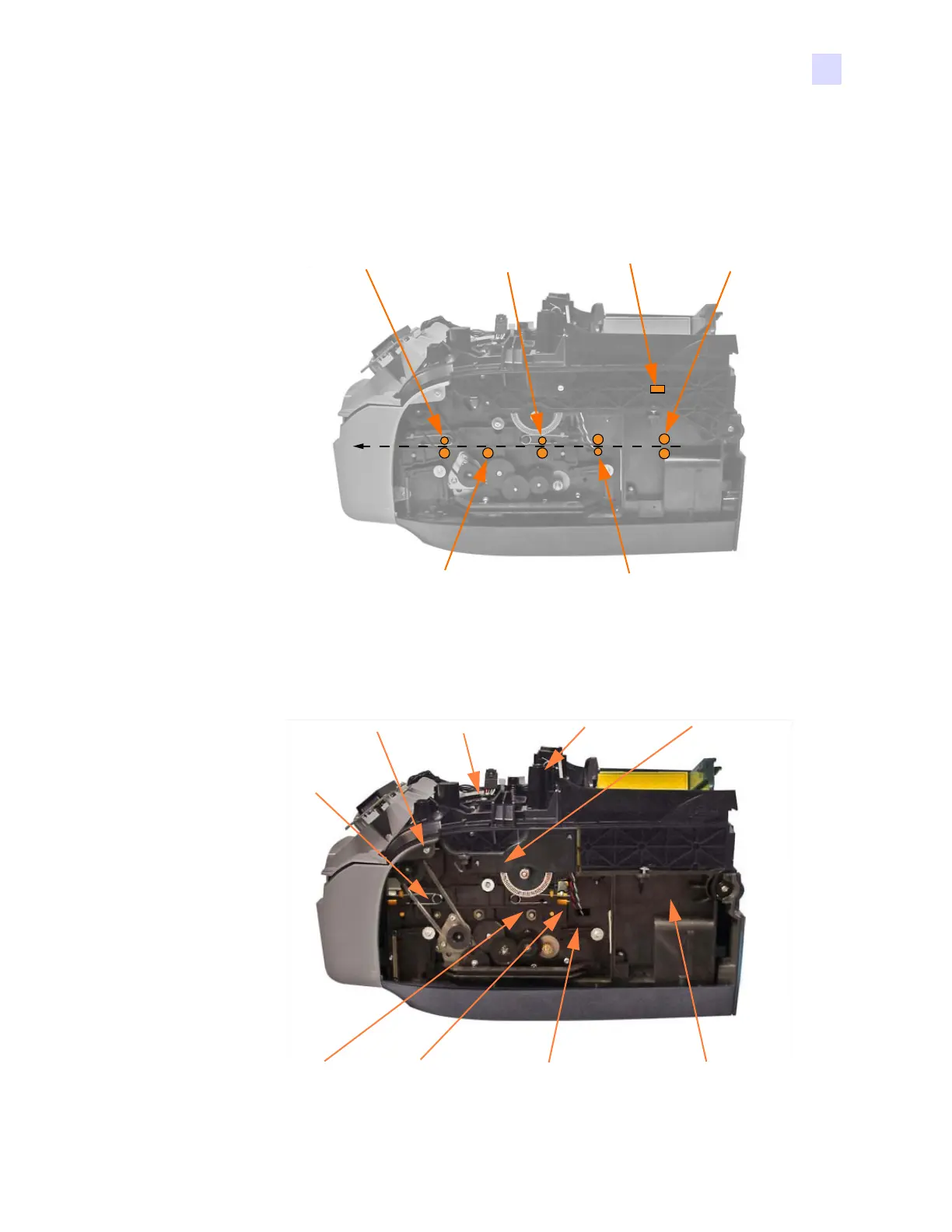

The figure below shows the rollers that transport cards as they make their way through the
Printer. The rollers keep the card on a horizontal path, reducing the chance of a card edge
catching on anything.
The figure below shows the relative locations of the sensors that track card and ribbon position
and movement.
Card Flipper
Rollers
Cleaning Rollers
Platen Roller
Exit Rollers Main Drive
Rollers
Feeder Roller
ATM Card Feed
Sensor J12
Feed Cover
Sensor J8
Ribbon Flag Position
Sensor J6
Card Sync
Sensor J9
Color Ribbon
Sensor J5
Flipper Position Sensor J11
(on Flipper)
Mag Encoder
Sensor J23
Lid Sensor J7
(on left side)
Card Load Sensor J10
(on Flipper)

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
