128 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.14 Ethernet PCBA

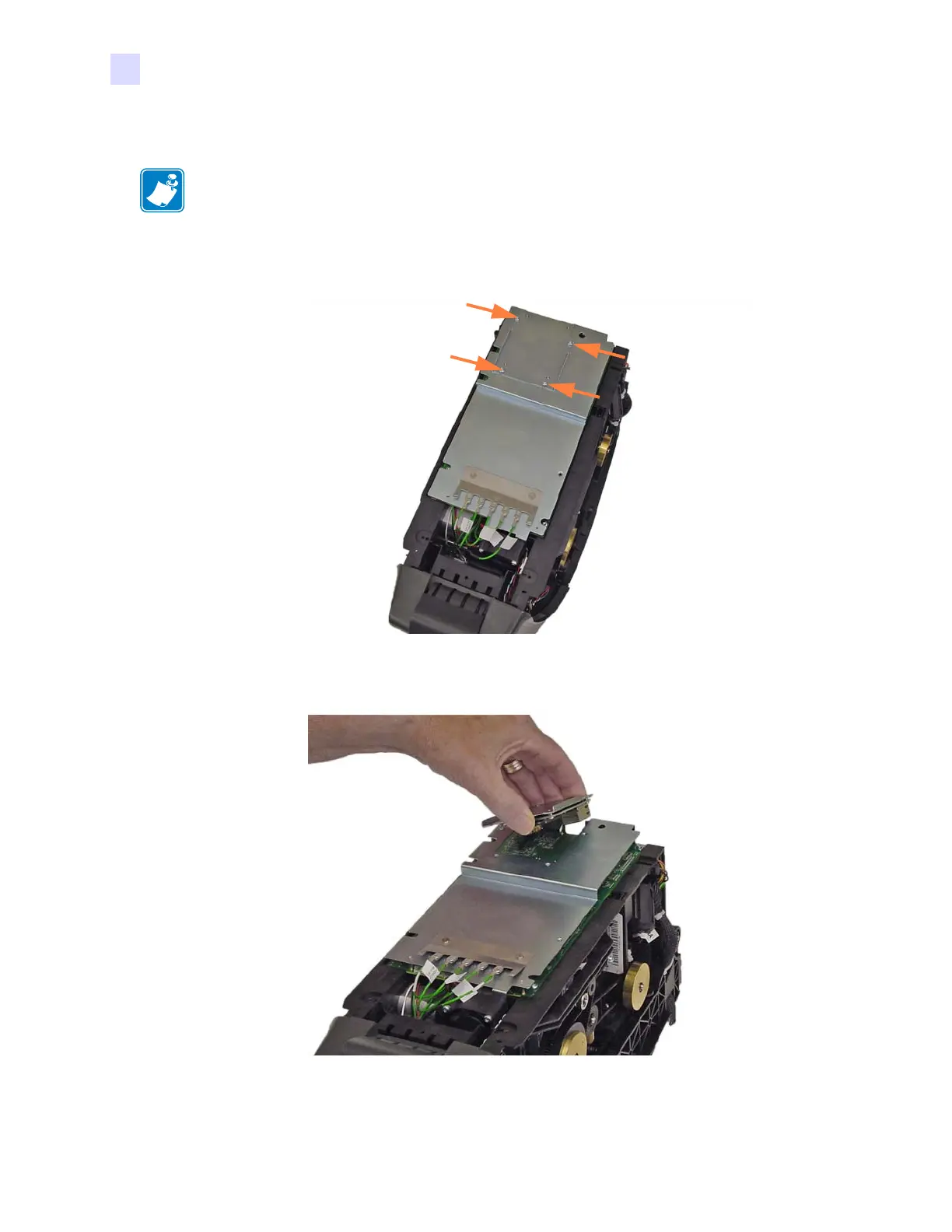

Step 1. With a TORX T10 driver, Remove the four screws (SCR M3x6, 6.0 n-lb) holding
the Ethernet Plate to the Ground Plate; arrows below.
Step 2. Remove the Ethernet PCBA and Plate.
NOTE • This procedure uses Spare Kit # P1031925-001: KIT, ETHERNET PCBA.
