Zebra ZXP Series 3 - 5.5.32 Lid Sensor

5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 159
5.5.32 Lid Sensor

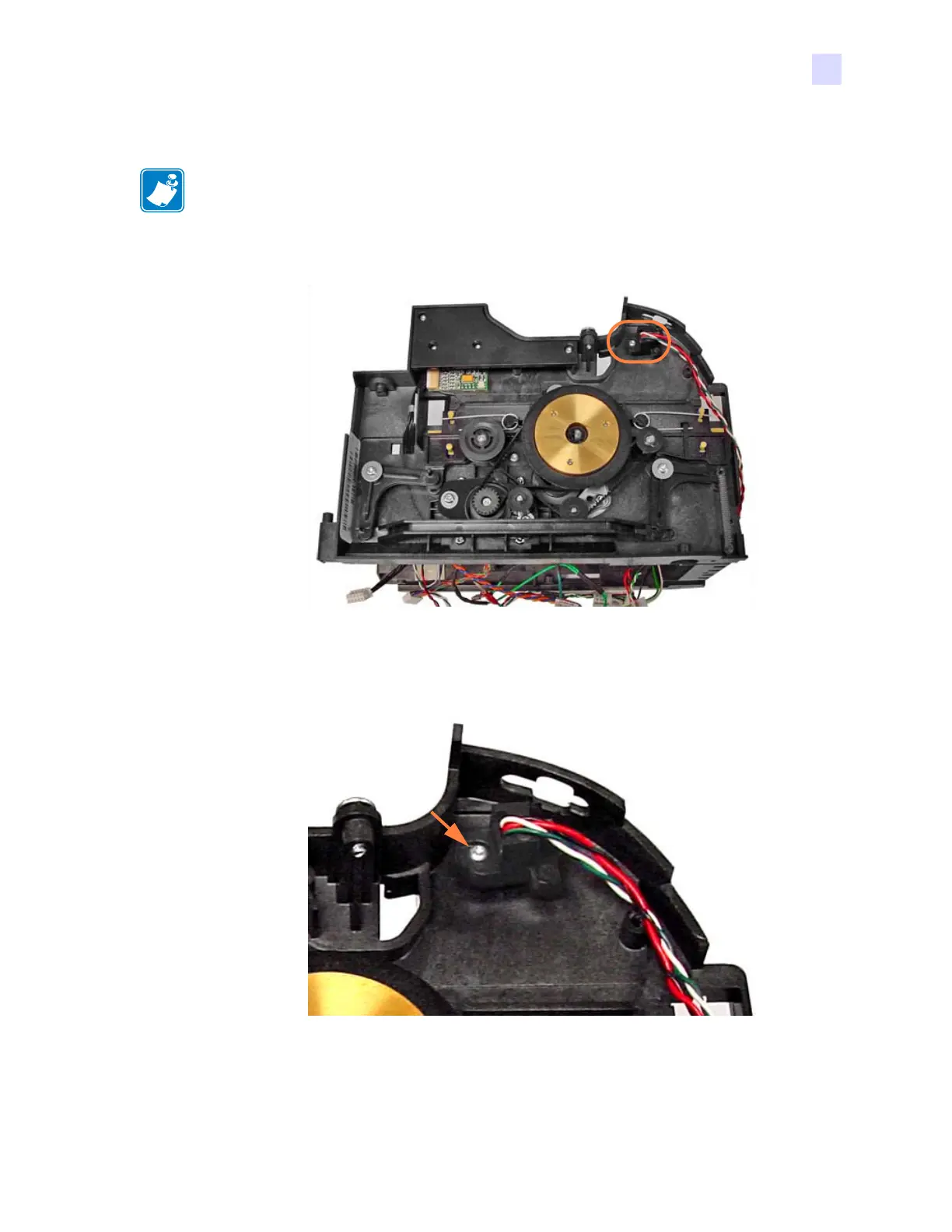

Step 1. Locate the Lid Sensor (circled below).
Step 2. With a TORX T7 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb) holding
the Lid Sensor in place.
Step 3. If not already done, disconnect the Lid Sensor plug from connector J7 on the
Main
PCBA.
Step 4. Remove the Lid Sensor.
NOTE • This procedure uses Spare Kit # P1031925-015: KIT, LID RIB ENCDR SENSOR
