Zebra ZXP Series 3 Service Manual

82 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
3: Theory of Operation
Card Movement During Printing
3.4 Card Movement During Printing
Step 1. The card is fed from the Card Feeder and loaded into the Card Flipper where it is
rotated into the print position.
Step 2. The card is moved into the Print Engine, passing the Cleaning Roller; this cleans dust
or dirt particles from the upper card surface.
Step 3. If the Printer includes an optional Magnetic Stripe Encoder, the card is moved to the
Magnetic Stripe Encoder, and the stripe is encoded.
After the card is encoded, it is checked to verify that the magnetic stripe was
properly encoded.
If encoding fails, the card is ejected into the Card Hopper. This is done to avoid
wasting time and ribbon panels on a defective card.
If the encoding is successful, the card is moved into the pre-print position, just before
the Printhead.

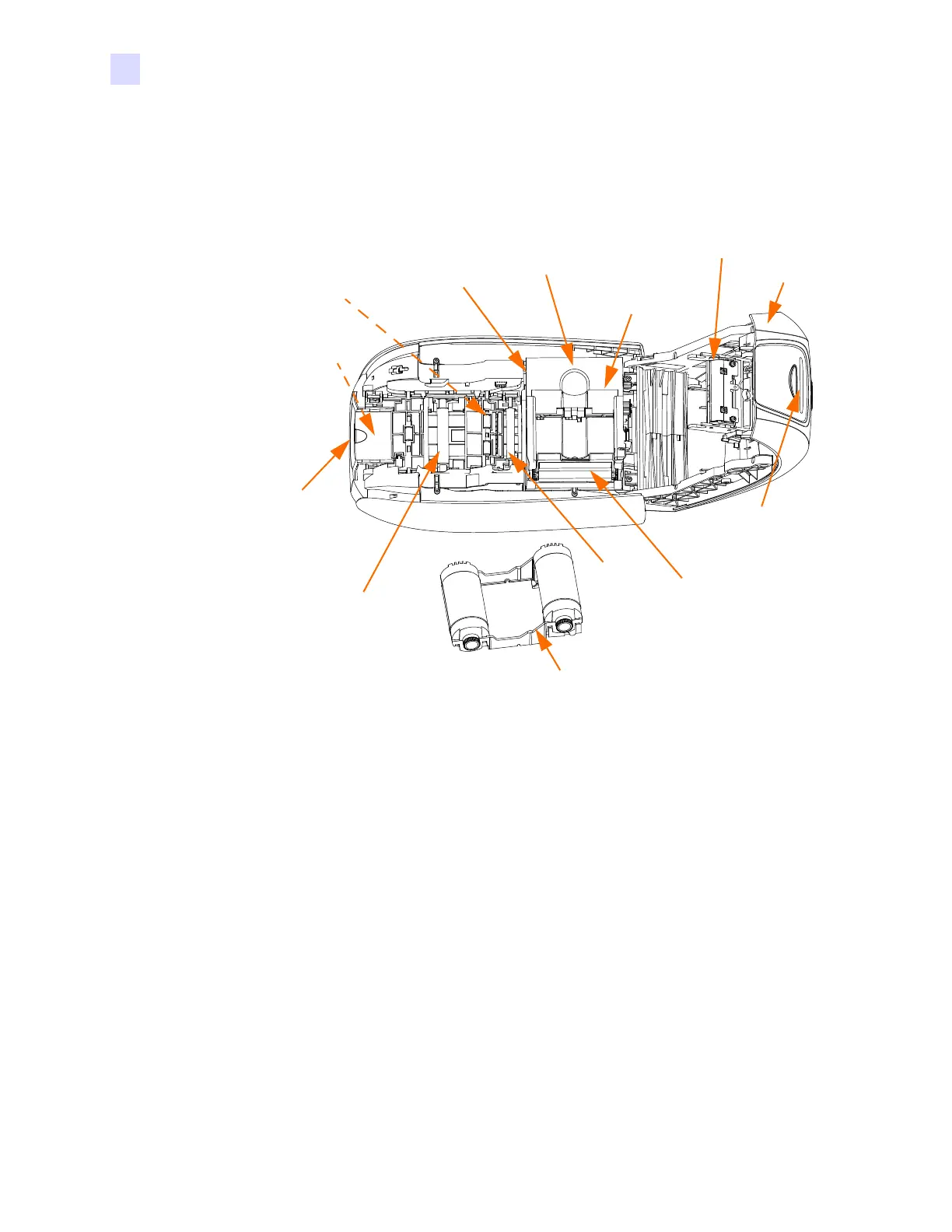

Printhead
Card
Feeder
Card
Guide
Ribbon
Cartridge
Card
Hopper
Card Flipper
(under Hopper)
Cleaning
Roller
Magnetic Stripe
Encoder (optional)
Platen
Roller
Lid
Multi-Function
LCD Panel
Smart Card
Option
Card Thickness
Adjustment

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
