5: Replacement Procedures
Procedures
5.5.3 Left Side Cover

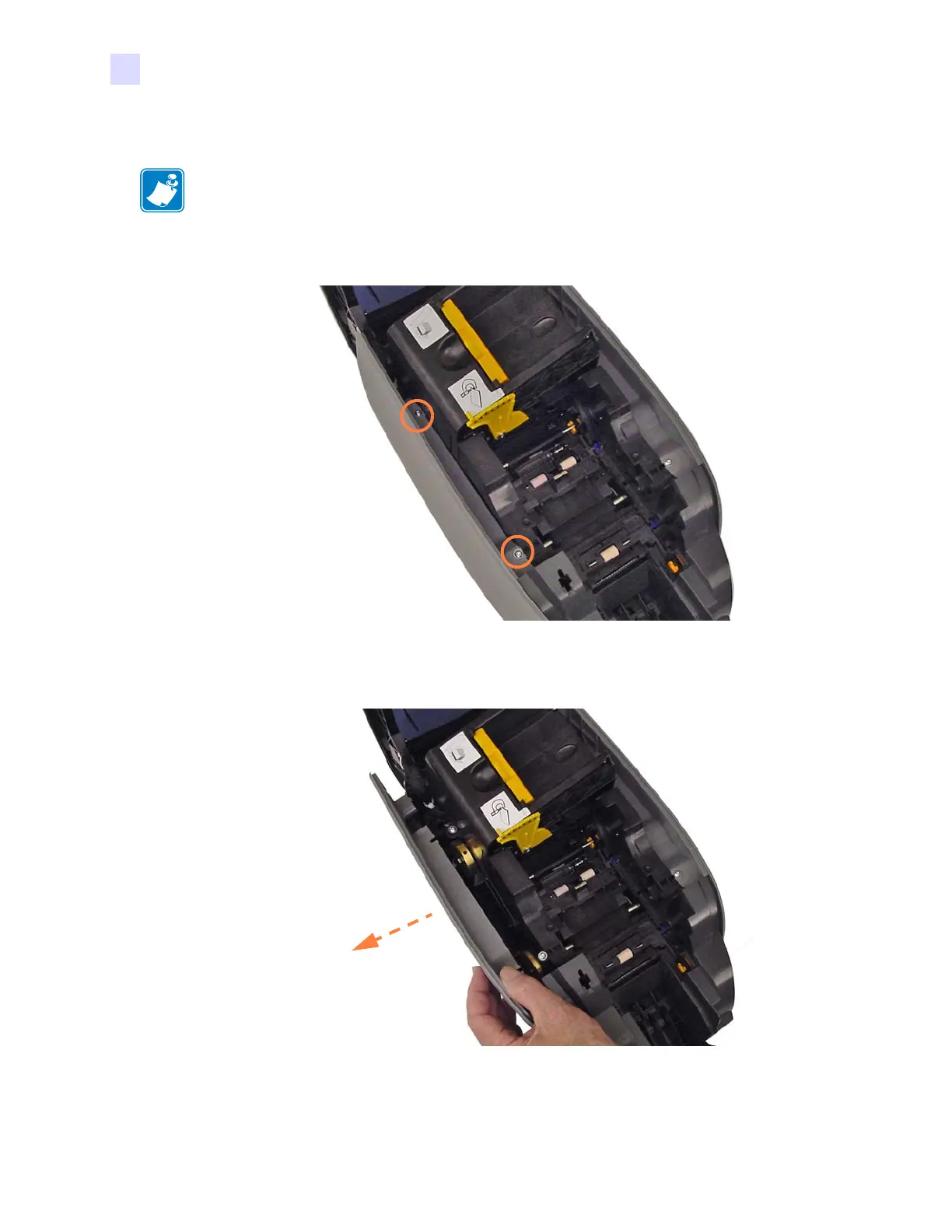

Step 1. Locate the two screws (circled below) that hold the Left Side Cover in place.
Step 2. With a TORX T10 driver, loosen the two screws (9.0 in-lb).
Step 3. Remove the Left Side Cover.
NOTE • This procedure uses Spare Kit # P1031925-243: KIT, SIDE PANELS BEZELS.
