5.5.40 Card Sync Sensor

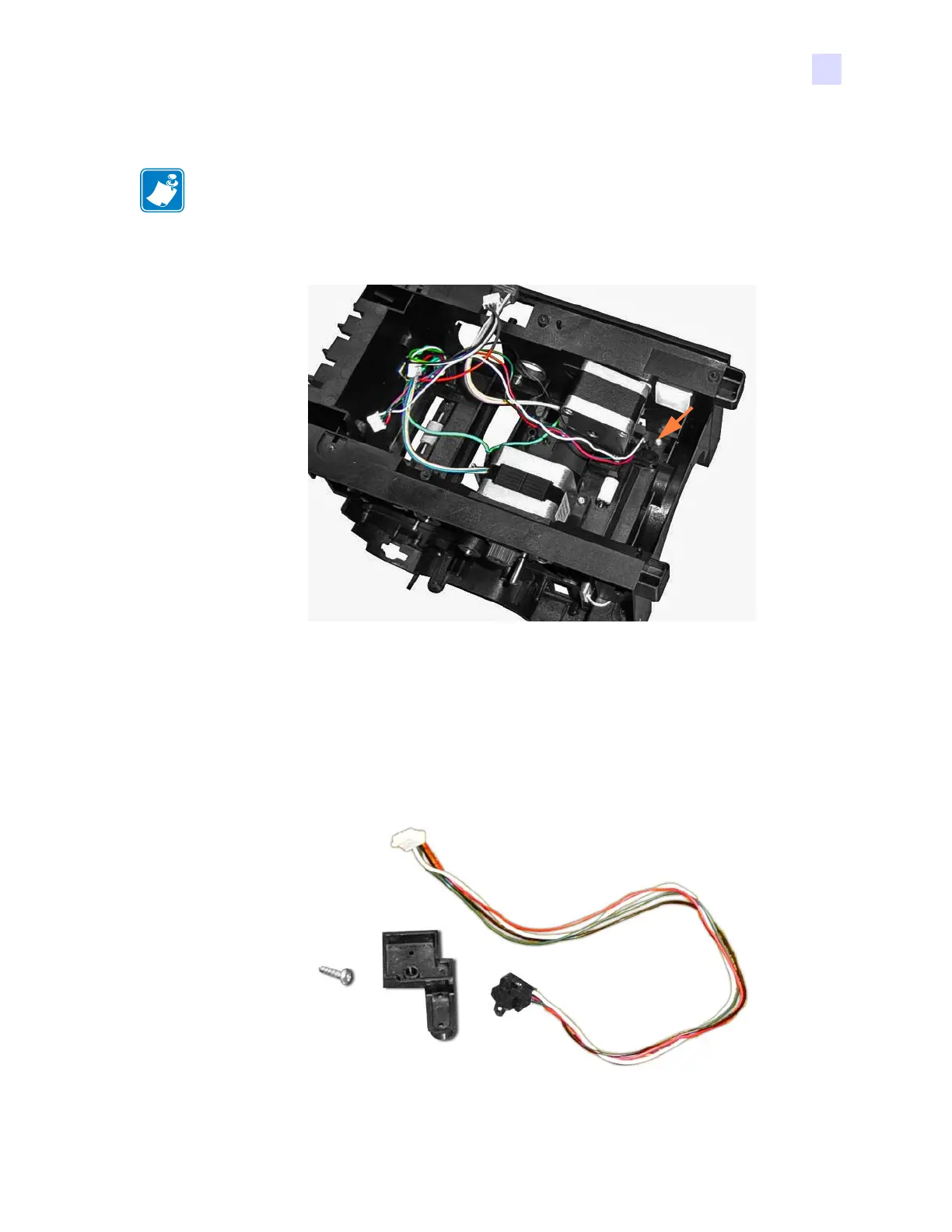

Step 1. Locate the Card Sync Sensor.
Step 2. With a TORX T7 driver, remove the screw (SCR, PLAST, 4-.37, 4.0 in-lb) and
retainer that hold the sensor in place.; arrow above.
Step 3. If not already done, disconnect the Card Sync Sensor plug from connector J9 on the
Main
PCBA.
Step 4. Remove the Card Sync Sensor.
NOTE • This procedure uses Spare Kit # P1031925-054: KIT, SYNC SENSOR.
