166 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.35 Stepper Motor

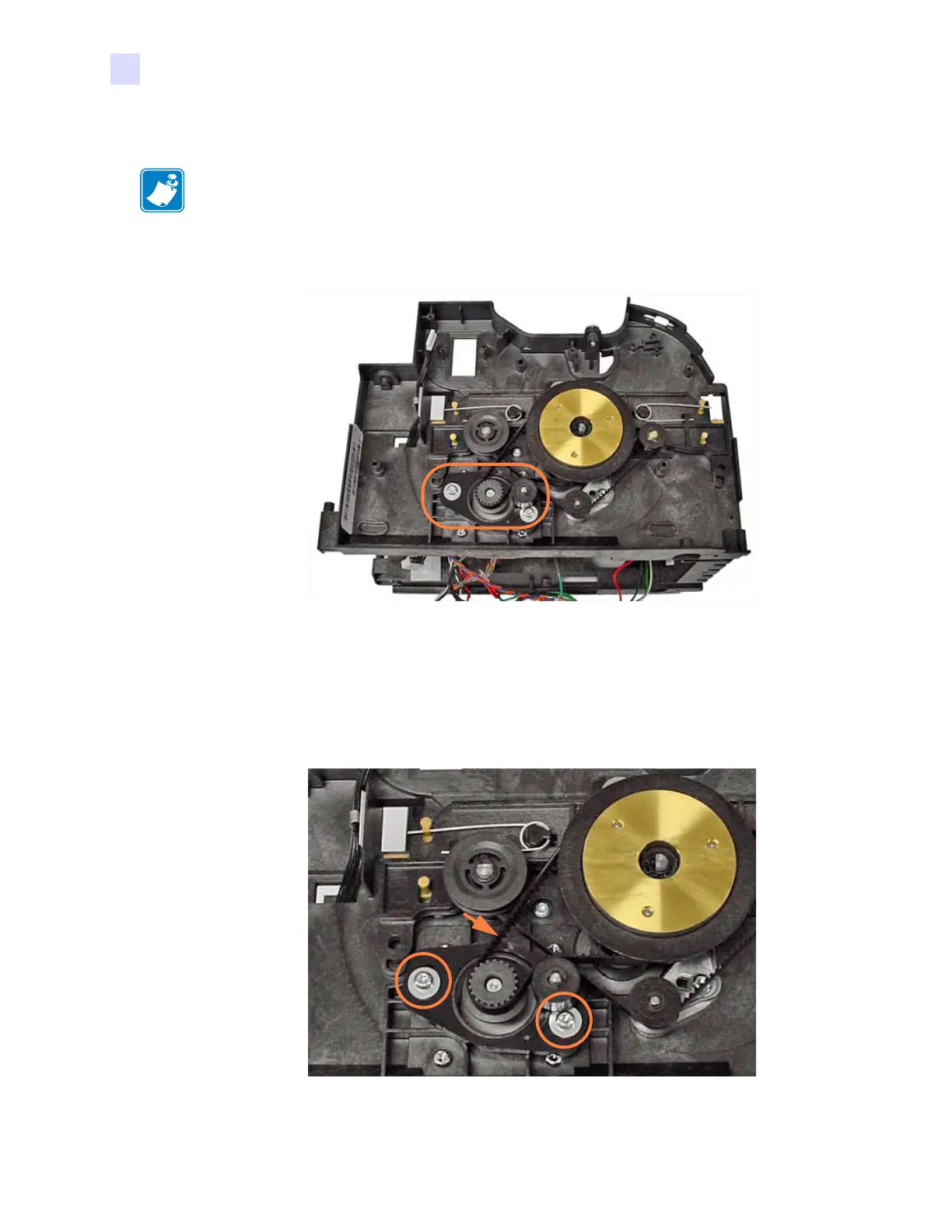

Step 1. Locate the Stepper Motor.
Step 2. If not already done, remove the left-side Linkage; see Linkage - Left Side on page
160.
Step 3. With a TORX T10 driver, loosen the two screws (7.0 in-lb) holding the motor collar
in place; circled below.
Step 4. Remove the associated belt (arrow above).
NOTE • This procedure uses Spare Kit # P1031925-217: KIT, MOTOR CARD DRIVE.
