144 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.23 Smart Card Sensor

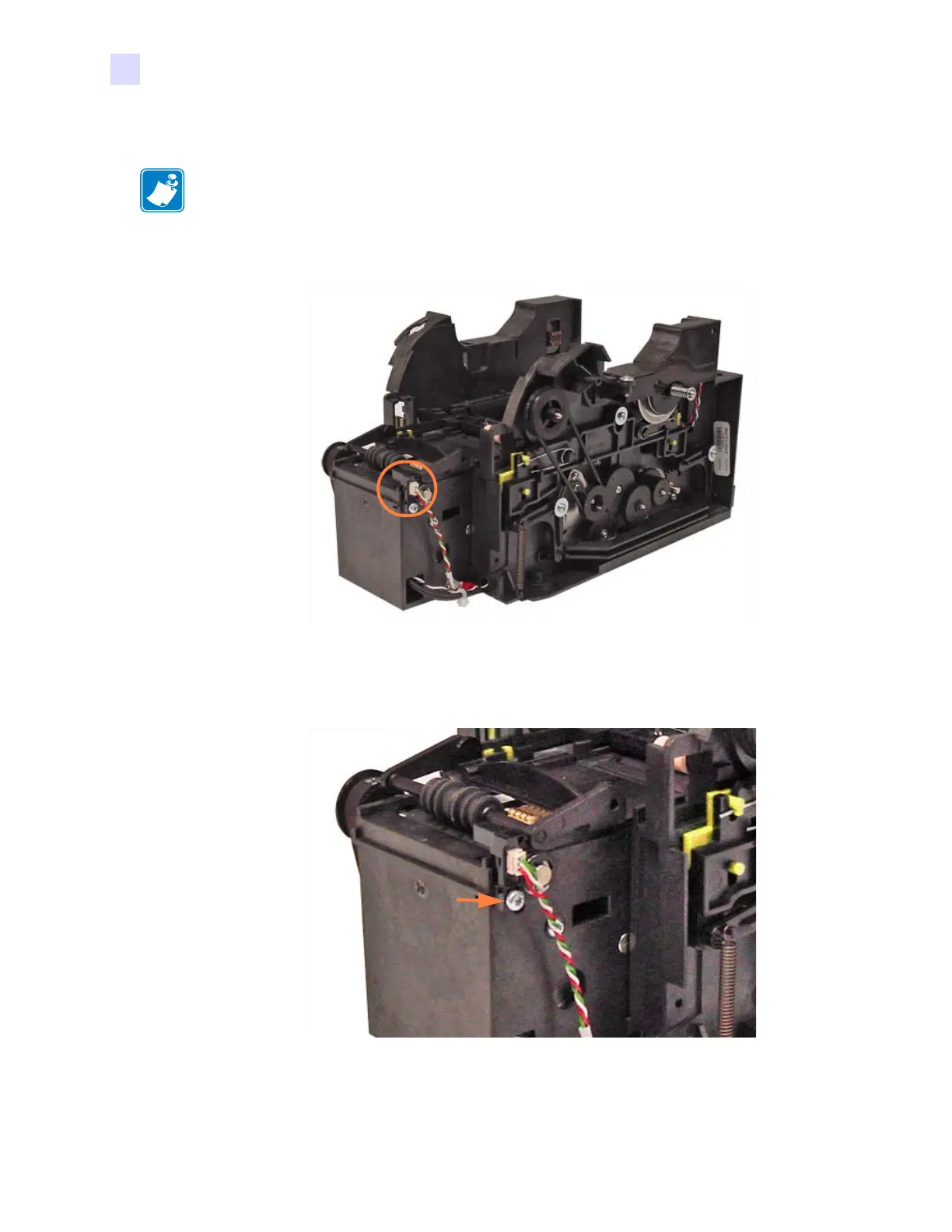

Step 1. Locate the Smart Card Sensor (circled below).
Step 2. With a TORX T10 driver, remove the screw (SCR, EJOT, 30x10, 5.5 in-lb) that
holds the Smart Card Sensor in place; arrow below.
Step 3. Remove (unplug) the Smart Card Sensor from the cable.
NOTE • This procedure uses Spare Kit # P1031925-016: KIT, SENSOR SMART CARD.
