Zebra ZXP Series 3 Service Manual

3: Theory of Operation
CPU PCBA Connections
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 85

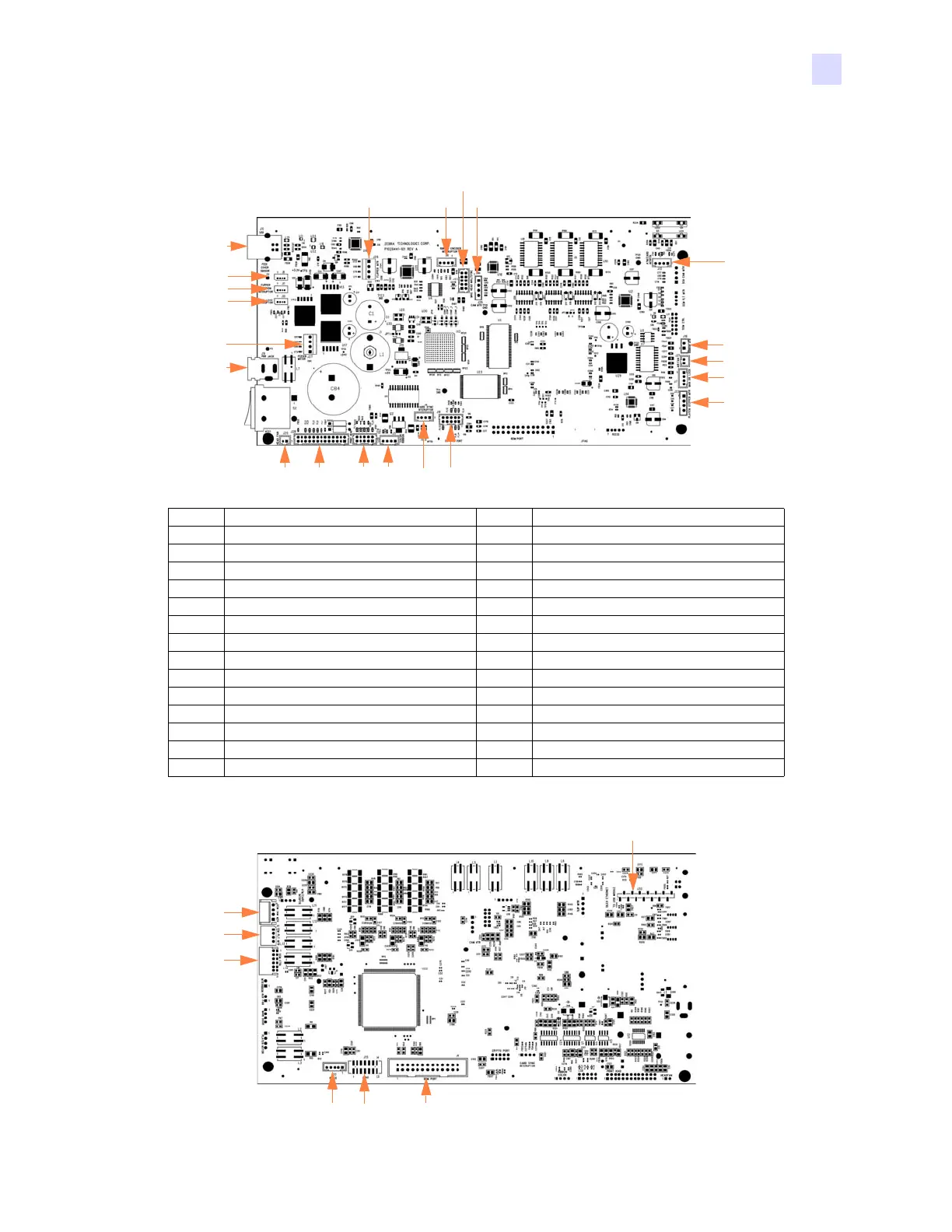

3.6 CPU PCBA Connections
J1
SCM CTRL (Note 1)
J16
RIBBON MTR
J2
None
J17
SCM PLT MTR (Note 1)
J3
None
J18
CRYPTO PORT
J4
BDM PORT (Note 1)
J19
PWR JACK
J5
COLOR RIBBON
J20
RS232 (Note 1)
J6
RIBBON ENCODER INTERUPTOR
J21
AIR FAN
J7
MAIN DRIVE LOCK
J22
PLATEN STEPPER MTR
J8
FEED COVER SENSOR
J23
MAG HEAD / MAG SYNC
J9
CARD SYNC INTERUPTOR
J24
LCD
J10
CARD LOAD INTERUPTOR
J25
HEAD FAN
J11
FLIPPER POSITION INTERUPTOR
J26
CAM MTR
J12
ATM CARD INTRPTR
J27
FEEDER MOTOR
J13
USB
J28
PRNT HEAD
J14
SCM CAM MTR (Note 1)
J29
FLIPPER MTR
J15
JTAG (Note 1)
J30
ETHERNET TO USB MODULE (Note 1)
Note 1: Bottom side of PCBA
J16
J29
J9 J18J5J24J28J25
J6
J23
J26
J13
J8
J11
J10
J19
J27
J21
J12
J7
J22
TOP SIDE
BOTTOM SIDE
J1
J14
J15J20
J17
J30
J4
