5: Replacement Procedures
Procedures
5.5.17 PCBA Fan

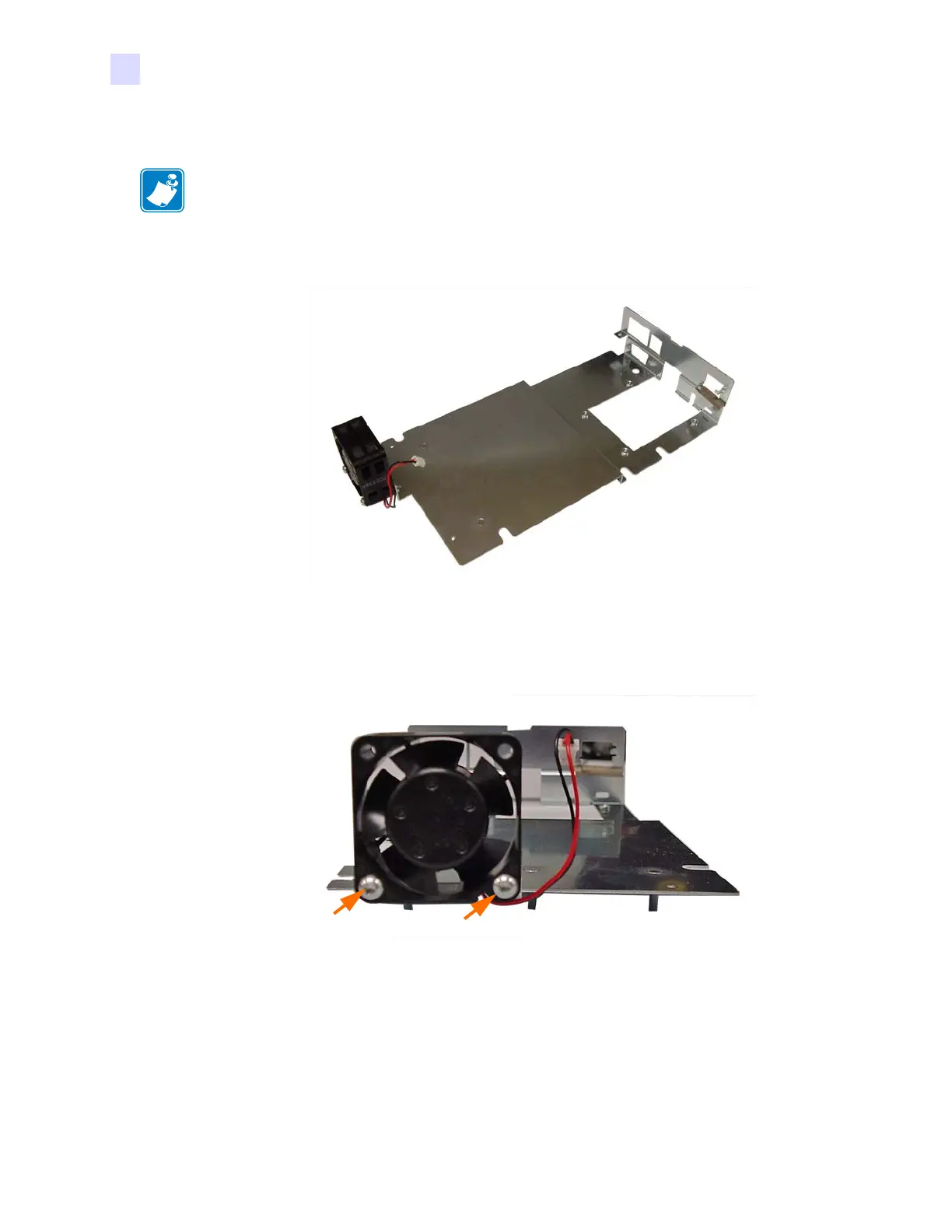

Step 1. With the Ground Plate removed, you can remove the PCBA Fan.
Step 2. With a TORX T10 driver, remove the two screws (SCR M3x25, 5.5 in-lb)
holding the Fan in place. Note the orientation of the Fan.
Step 3. Set the Fan aside
NOTE • This procedure uses Spare Kit # P1031925-071: KIT,COOLING FANS.
