160 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures

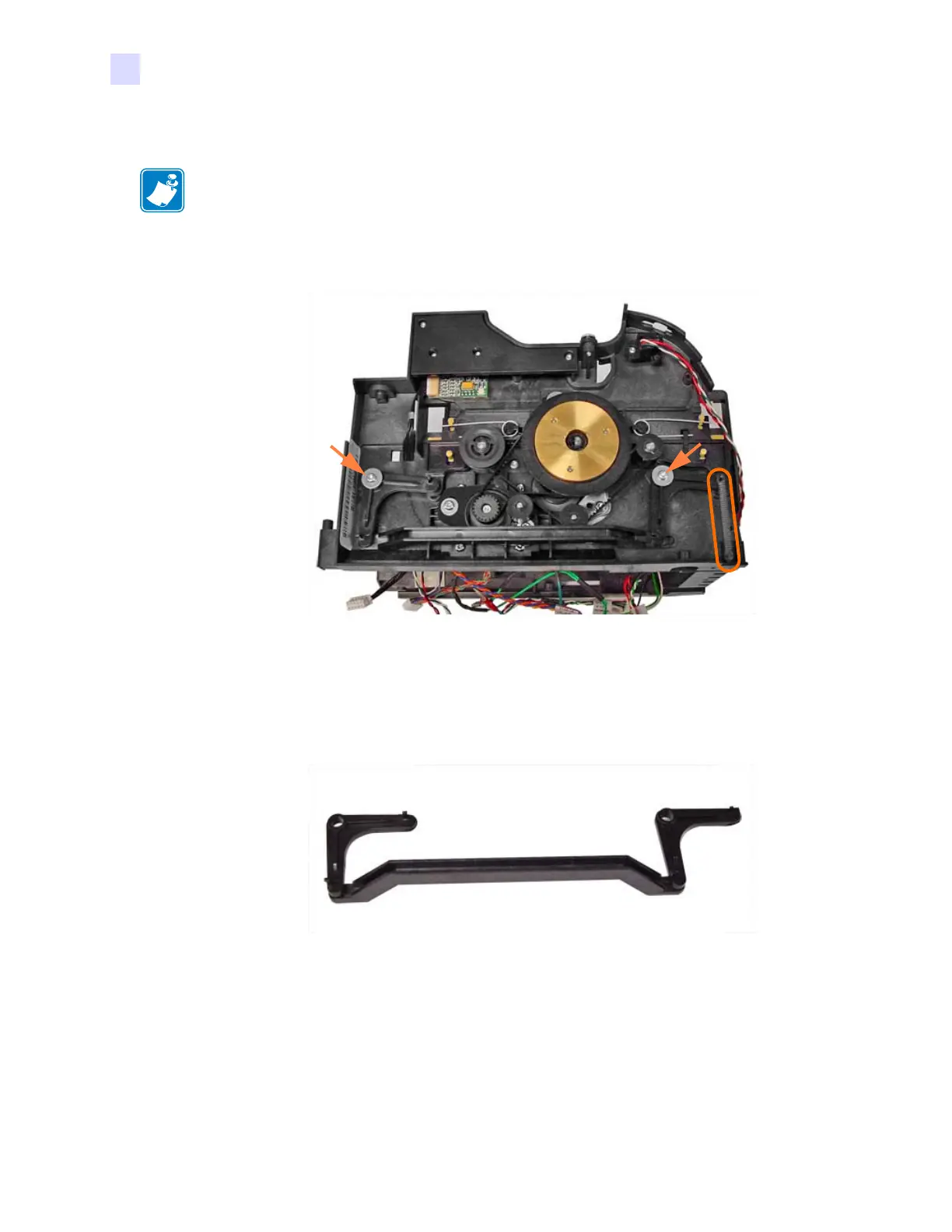

5.5.33 Linkage - Left Side
Step 1. Remove the Linkage Spring (circled below).
Step 2. With a TORX T10 driver, remove the two screws (SCR, PLAST, 4-.37L, 7.0 in-lb)
and washers holding the Linkage to the Frame; arrows above.
Step 3. Remove the Linkage (3 pieces).
NOTE • This procedure uses Spare Kit # P1031925-072: KIT, DRIVE LINKAGE or
Spare Kit # P1031925-021:
KIT, SPRINGS FOR LINKAGE.
