5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 161
Belt Installation

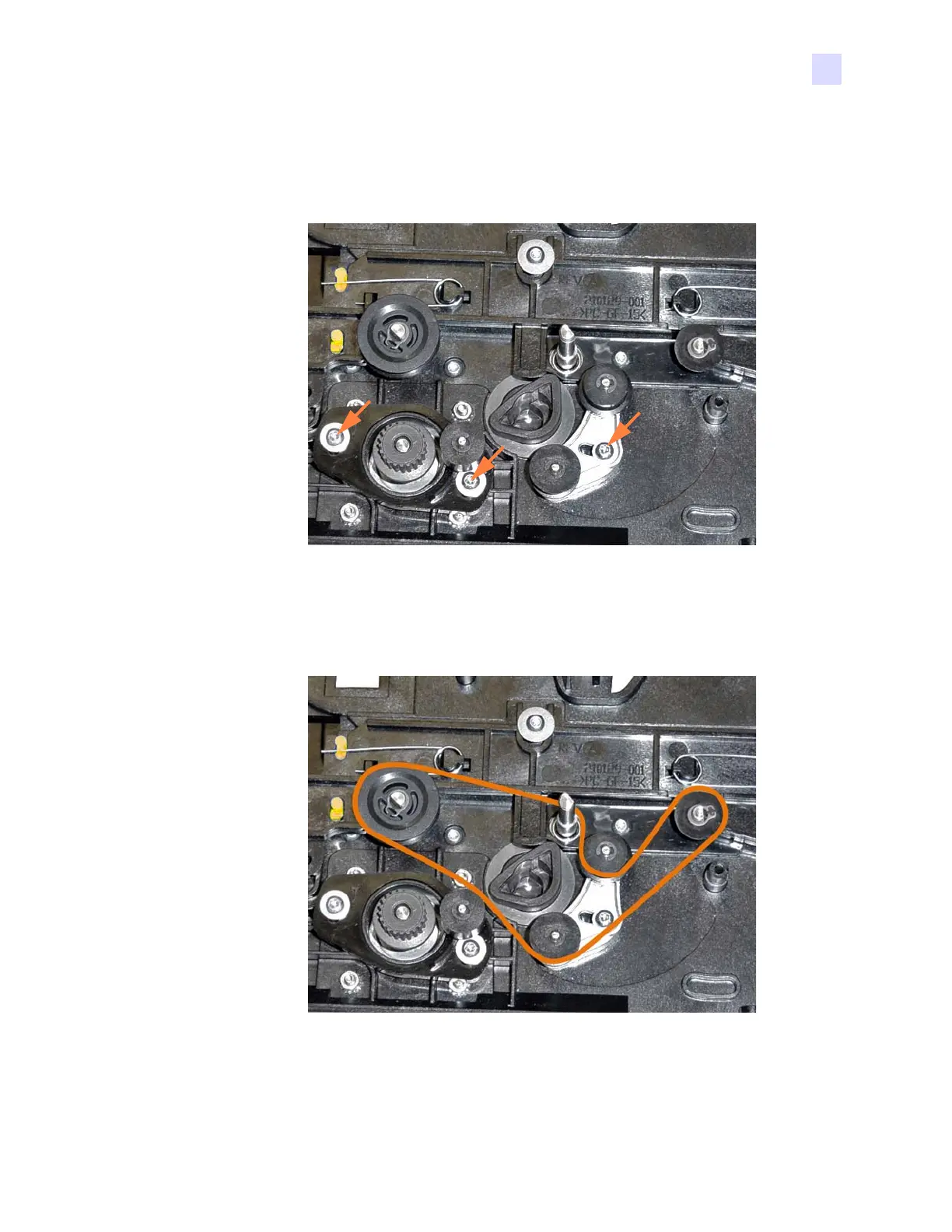

Step 1. With a TORX T10 driver, loosen the two motor collar screws (4-40x5/16), 7.0 in-lb),
two left arrows; and the tensioner screw (4-40x5/16), 5.5 in-lb), right arrow.
Step 2. Install the belts and associated gears and pulleys. The following two figures show
the belt “path” for the two belts removed in this section.
a. Install Belt 1 (orange path below).
