Zebra ZXP Series 3 Service Manual

62 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
2: Installation and Setup
Changing the Printer Driver Options
Encoding Tab

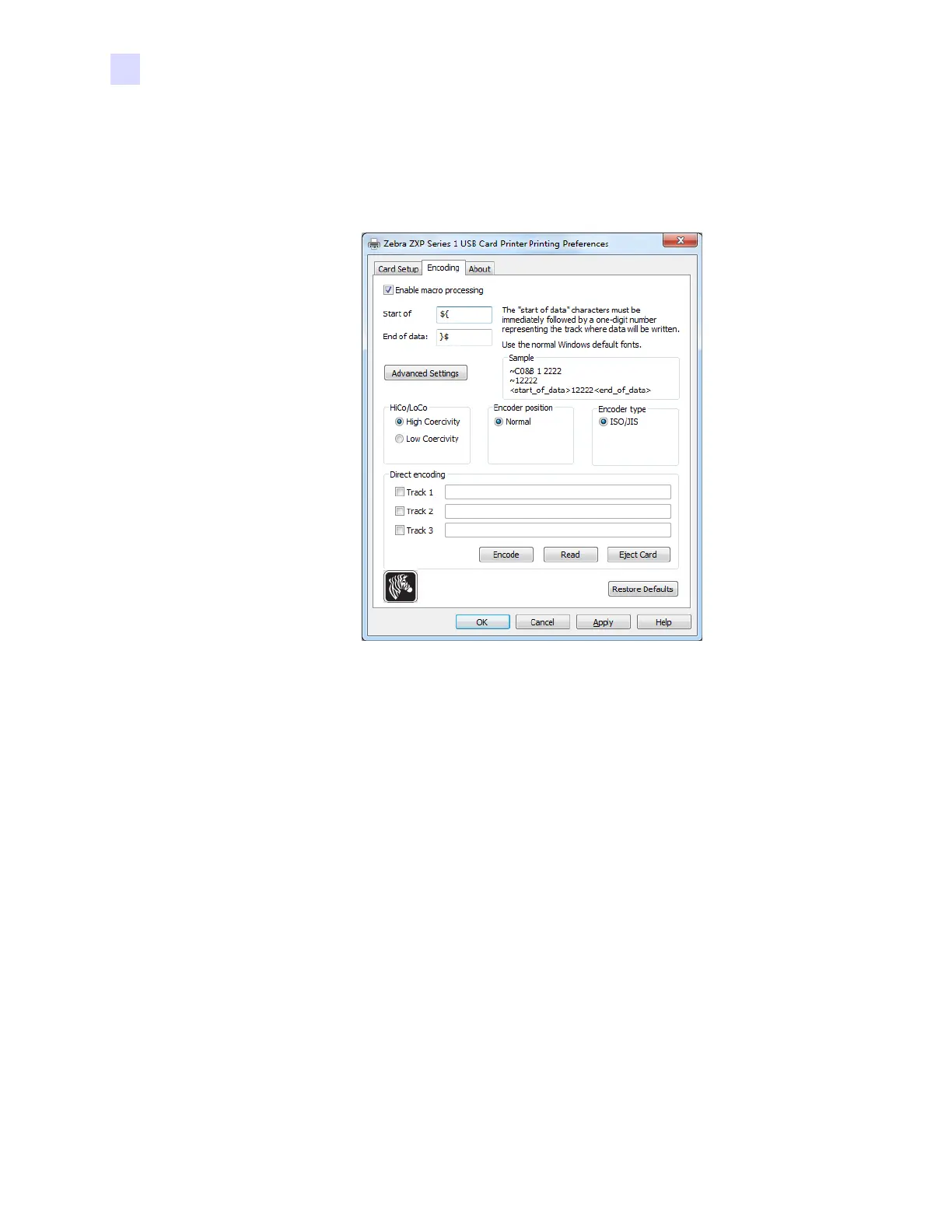

The Encoding tab dialog box is for setting Magnetic Encoder parameters. This feature is not
enabled if the printer does not have the magnetic encoder option.
• Enable macro processing - This option is used to set the encoding preamble and other
magnetic encoder parameters.
- Start of Data - Beginning of the data string for the encoder. Note that Start of Data
characters must be immediately followed by a one-digit number representing desired
track where the data will be written. Use the normal Windows default fonts.
- End of Data - Ending of the data string for the encoder.
• Advanced Settings - Click on the Advanced Settings button for additional encoding
options; for details, see Advanced Settings on page 64.
• HiCo/LoCo - Select the type of coercivity of magnetic stripe cards to be used.
• Encoder Position - Select the printer encoder position: Normal.
• Encoder Type - Select the type of encoder: ISO/JIS. Note that JIS is not implemented.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
