Changing the Printer Driver Options

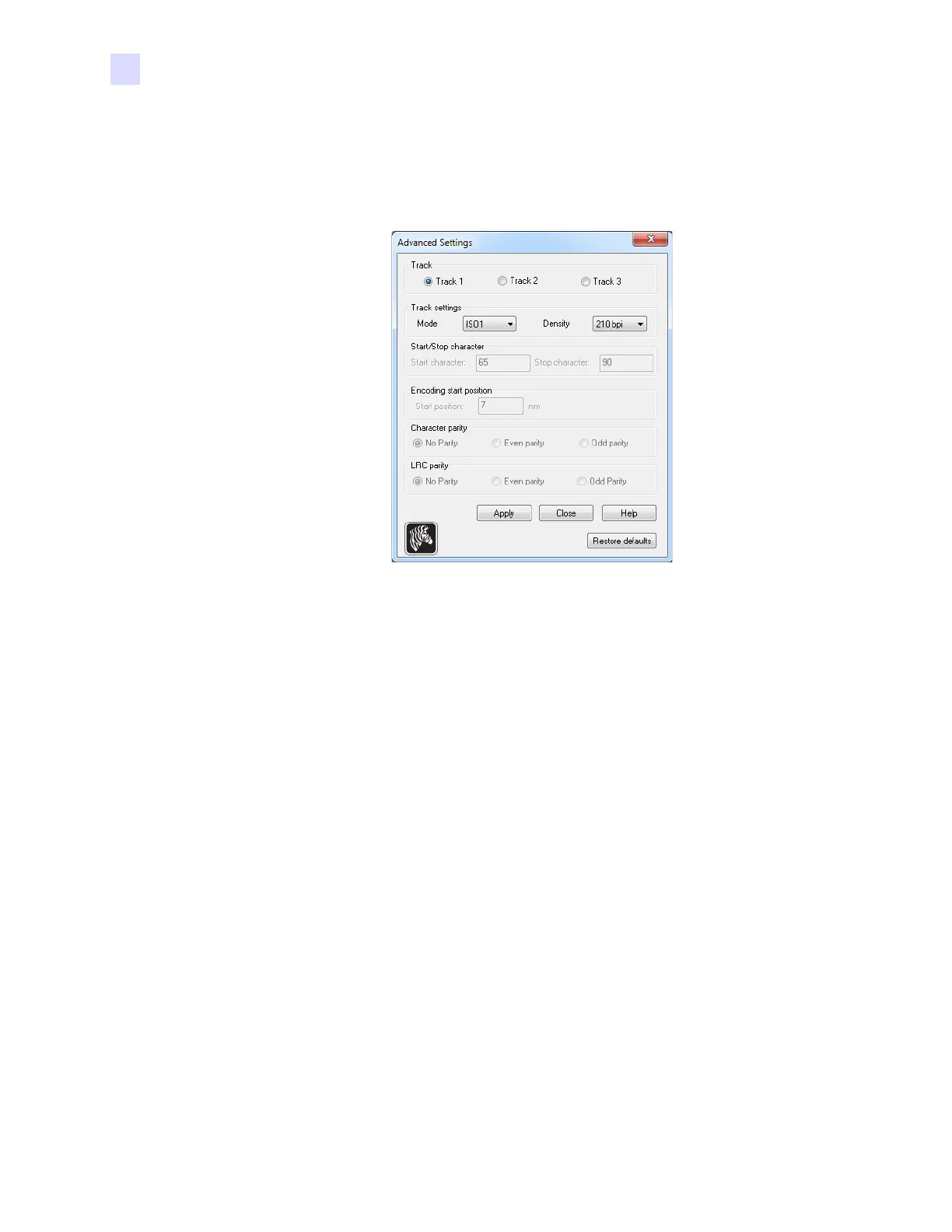

Advanced Settings
Advanced Settings provides advanced configuration capabilities and tools to manage magnetic
encoder operation. This option is primarily used for Non-ISO encoding.
• Track: Select the track you want to configure.
• Track Settings:
- Mode: Select ISO1, ISO2, ISO3, 3 bit, 4 bit, 5 bit, 6 bit, or 7 bit.
- Density: Select 75 bpi or 210 bpi for the tracks.
• Start/Stop Character (For Non-ISO encoding only): Enter an ASCII value for the Start
and Stop characters.
• Encoding Start Position (For Non-ISO encoding only): Enter the encoding start position
in millimeters (mm).
• Character Parity (For Non-ISO encoding only): Choose the Character Parity you want to
work with -- No parity, Even parity, or Odd parity.
• LRC Parity (For Non-ISO encoding only): Choose the LRC Parity you want to work
with -- No parity, Even parity, or Odd parity.
Click the Restore Defaults button to reset the settings to the original values.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
