Zebra ZXP Series 3 Service Manual

5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 129
5.5.15 Main PCBA
Step 1. Print a Standard Test Card (see Print a Test Card on page 71). This card will
provide you with the Head Resistance, the X and Y Offsets, and the End of Text
value to update the firmware on the replacement Main
PCBA.

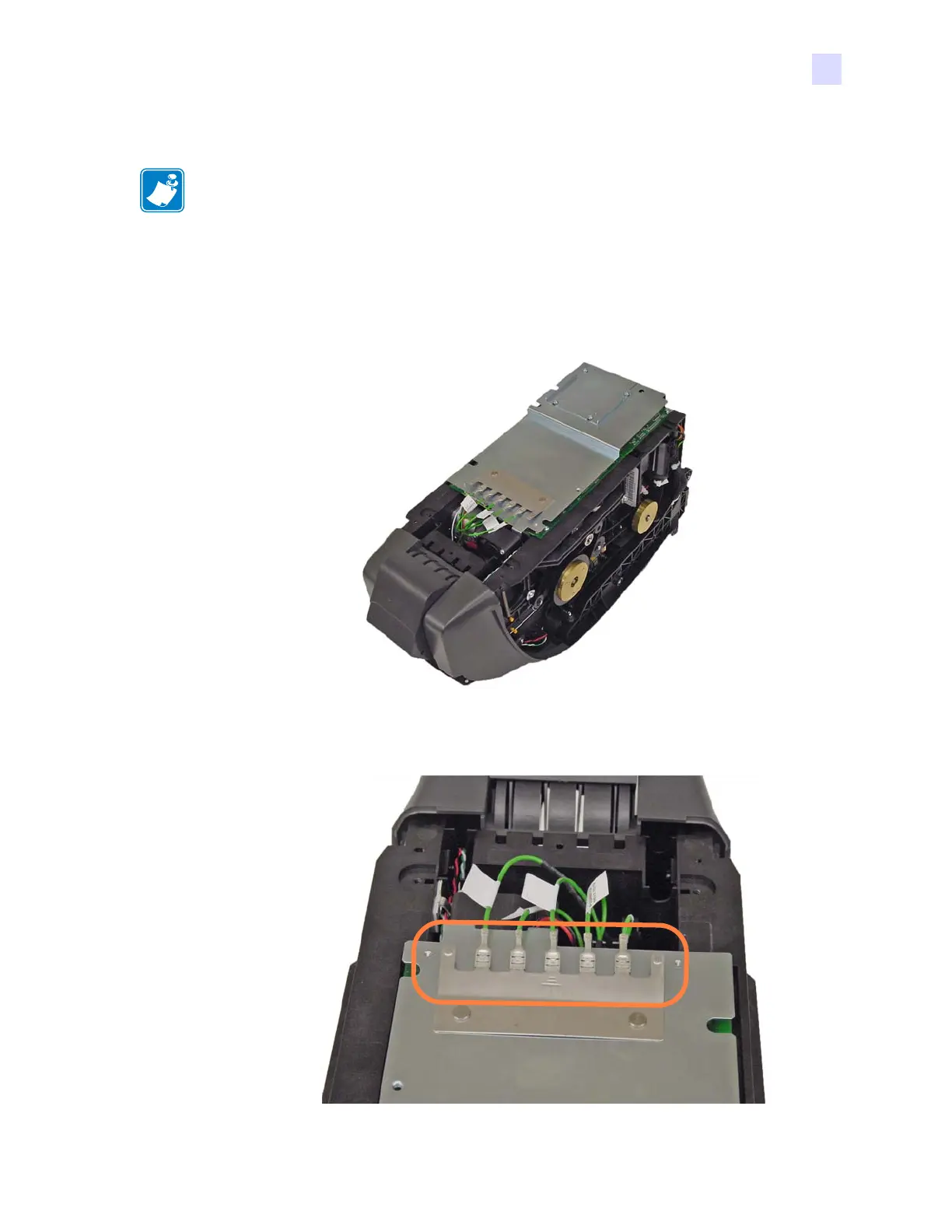

Step 2. With the Bottom Cover removed, the Main
PCBA is visible and accessible.
Step 3. Remove the ground wires from the tabs (circled below) on the Ground Plate.
NOTE • This procedure uses Spare Kit # P1031925-007: KIT, MLB SINGLE SIDED or
Spare Kit # P1031925-008: KIT, MLB DUAL SIDED.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
