Zebra ZXP Series 3 Service Manual

186 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.43 ATM Card Feed Sensor

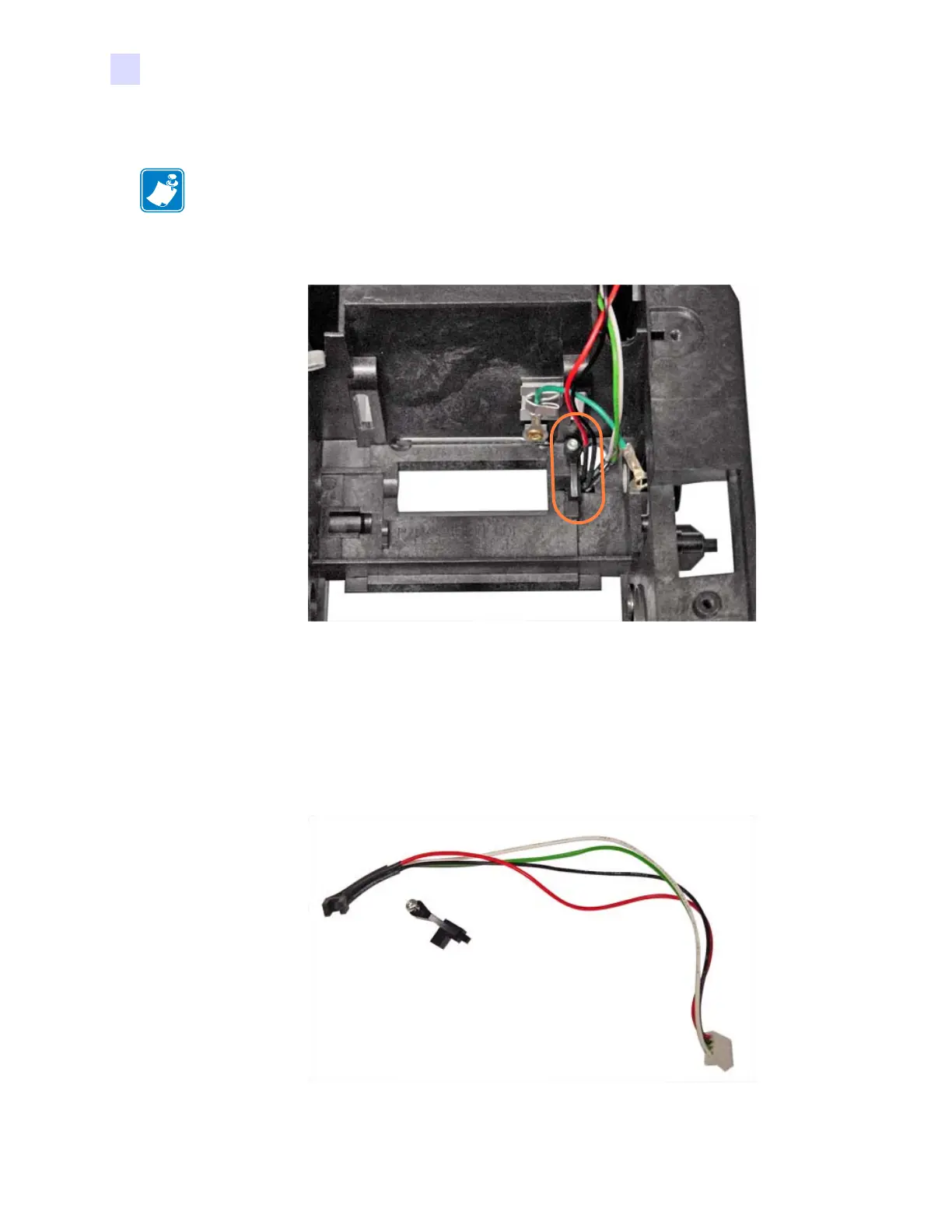

Step 1. Locate the ATM Card Feed Sensor (circled below).
Step 2. With a TORX T7 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb) that
holds the retaining bracket and ATM Card Feed Sensor in place.
Step 3. If not already done, disconnect the ATM Card Feed Sensor plug from connector J12
on the Main
PCBA.
Step 4. Remove the ATM Card Feed Sensor (and retaining bracket).
NOTE • This procedure uses Spare Kit # P1031925-014: KIT, ATM SENSOR.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
