Zebra ZXP Series 3 Service Manual

1: General Description
Features, Controls, and Indicators
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 3

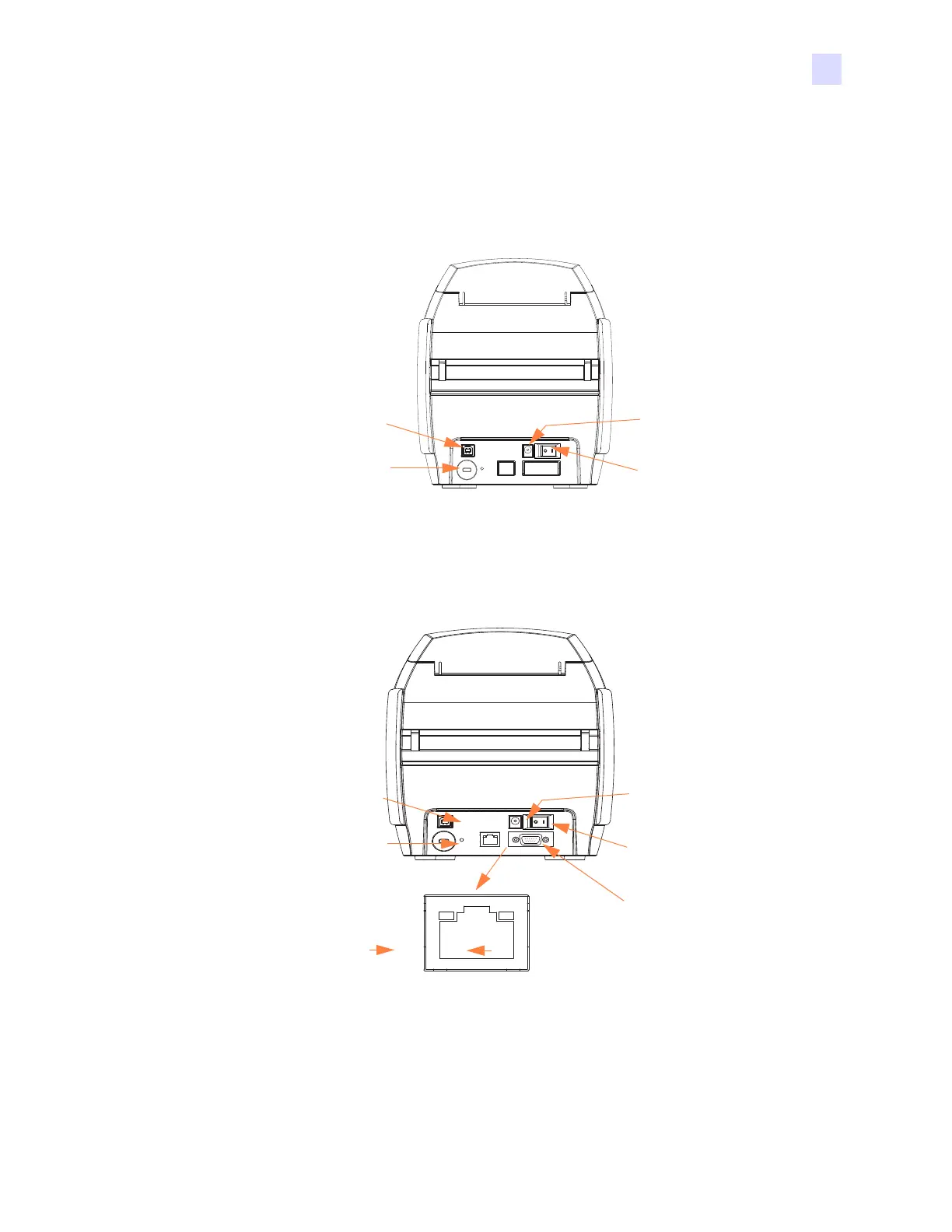

Rear Panel Connectors, Controls, and Indicators
Standard USB Connection
The figure below shows the rear of the Printer with the USB interface.
Ethernet Connection
The figure below shows the rear of the printer with the standard USB interface with the
Ethernet and DB-9 Smart Card Contact Station Options.
The Ethernet Connector has two LED status indicators:
• Power LED (amber): When illuminated, indicates power is on.
• Link LED (green): When illuminated, indicates valid Printer-Ethernet connectivity.
USB
Connector
Power
Socket
Power
Switch
Security
Cable Slot
Power
Switch
Power
Socket
Ethernet Connector
DB-9 Connector if Smart
Card Contact Station
Option is installed
USB
Connector
Security
Cable Slot
Link LED Power LED

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
