Zebra ZXP Series 3 Service Manual

150 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
5.5.28 Rocker - Right Side

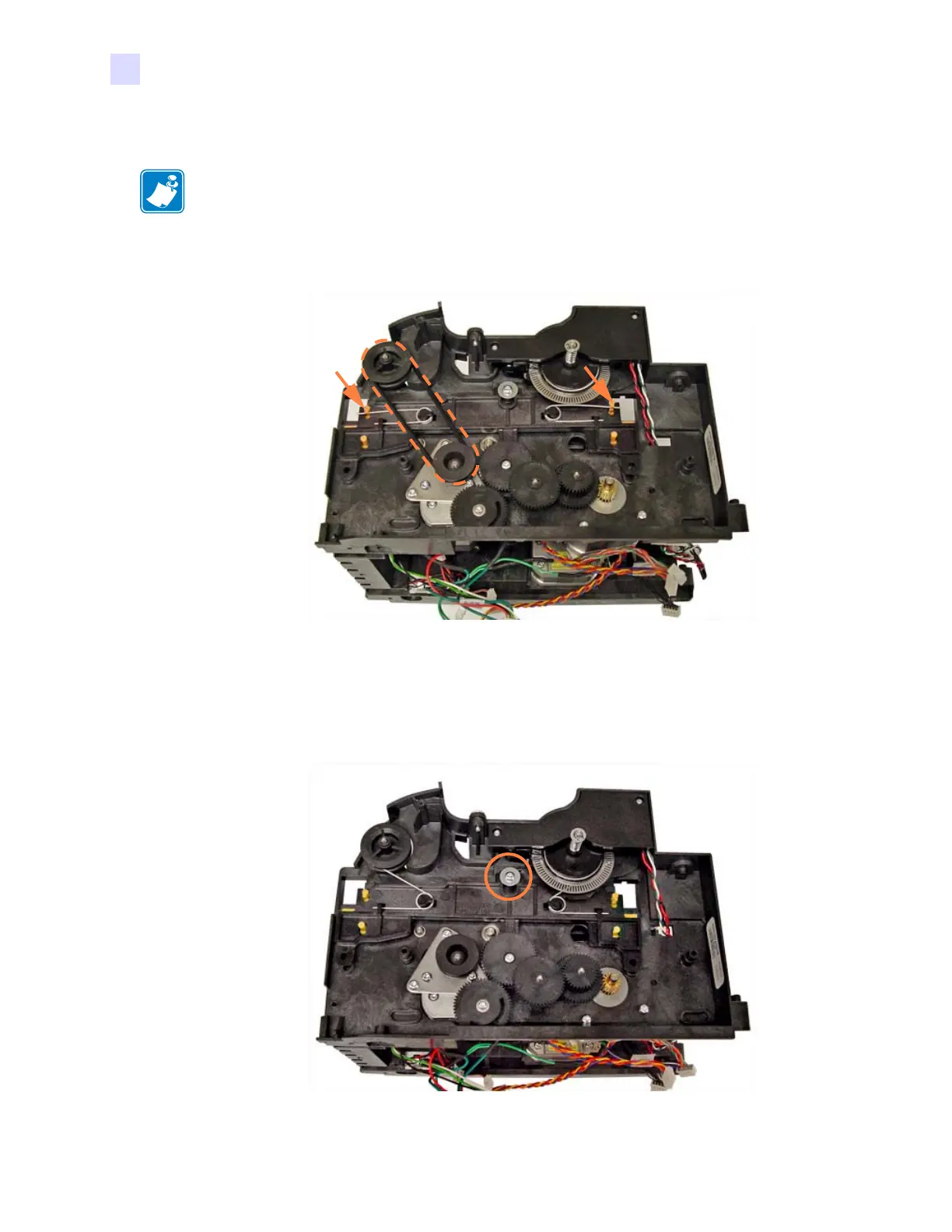

Step 1. Remove the O-ring belt (dashed circled below).
Step 2. Release the two Rocker Springs (arrows above).
Step 3. With a TORX T10 driver, remove the screw (SCR 4-.25L, 7.0 in-lb) and washer
holding the Rocker in place; circled below.
NOTE • This procedure uses Spare Kit # P1031925-020: KIT, DRIVE LINKAGE;
Spare Kit # P1031925-021:
KIT, SPRINGS FOR LINKAGE; or Spare Kit #
P1031925-023:
KIT, RIBBON DRIVE SYSTEM.
