5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 151

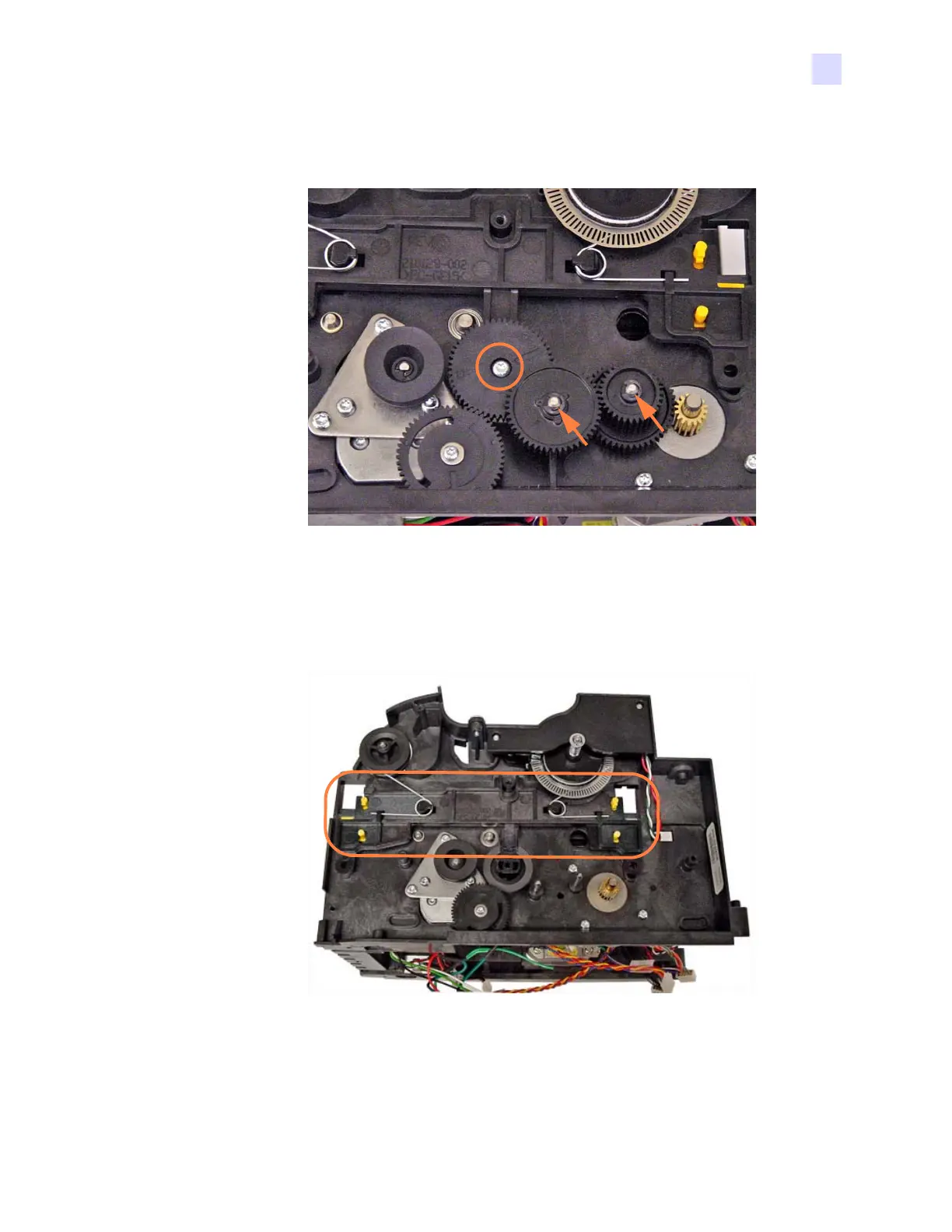

Step 4. Remove the retaining clips from the first and second Gears (arrows below), and
remove the two Gears.
Step 5. With a TORX T10 driver, remove the screw (SCR, PLAST, 4-.37L, 5.5 in-lb) from
the third Gear, circled above; and remove the Gear.
Step 6. Remove the Rocker Assembly (circled below).
Step 7. Set the Rocker Assembly aside.
