Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Changing the Printer Driver Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 41

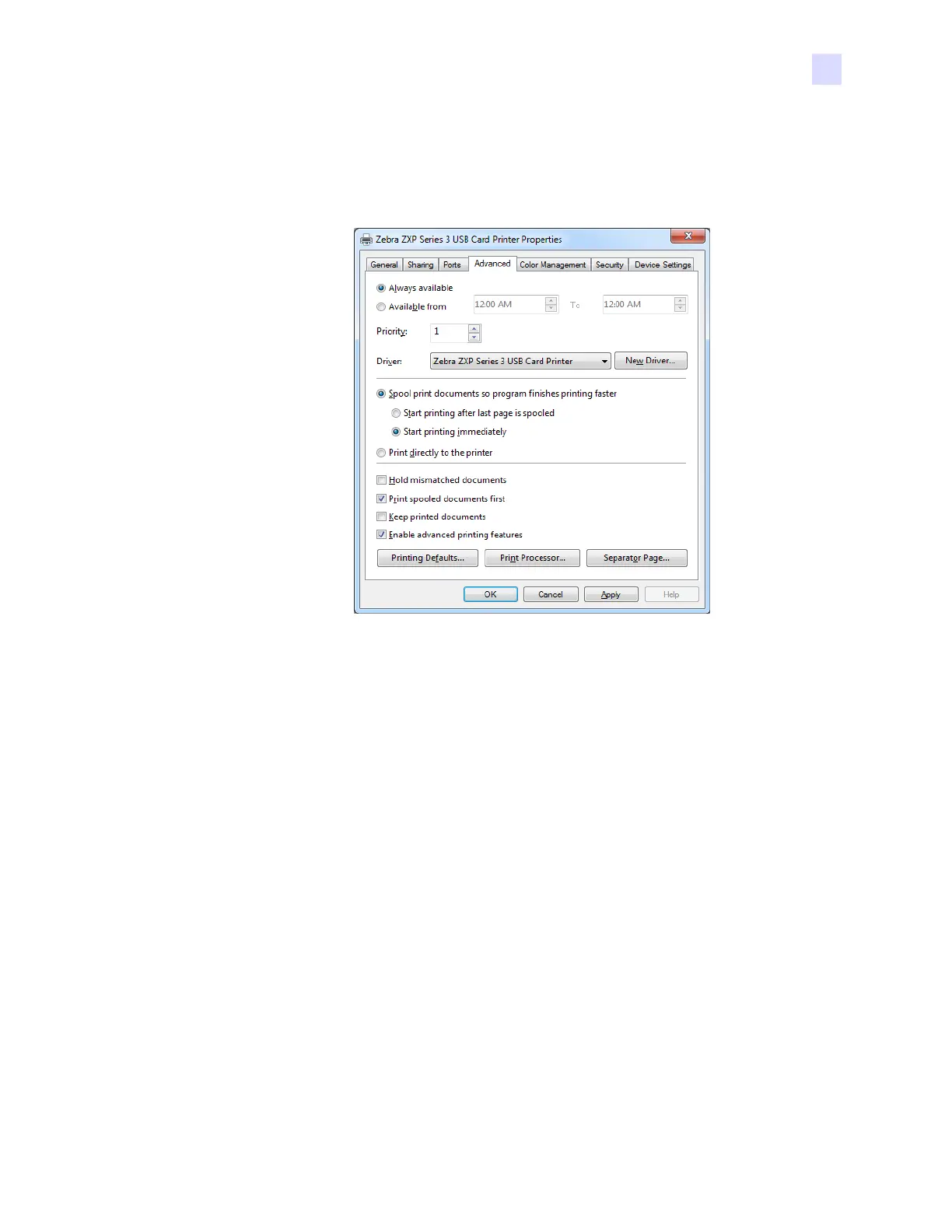

Advanced Tab
The Advanced tab determines the spooling (queuing) of print jobs and determines how
spooled jobs are handled relative to the most recent job.
You can make the printer always available by selecting the Always available radio button, or
you can limit availability by selecting the Available from radio button and specifying the
“Available from” and “To” times. Click the Apply button, and then the OK button.
• To enable spooling: Select the radio button labeled Spool print documents so program
finishes printing faster.
- Select Start printing after last page is spooled if you want the entire document to be
spooled before printing begins. This option ensures that the entire document is sent to
the print queue before printing. If for some reason printing is canceled or not
completed, the job will not be printed.
- Select Start printing immediately if you want printing to begin immediately when the
print device is not already in use. This option is preferable when you want print jobs
to be completed faster or when you want to ensure that the application returns control
to users as soon as possible.
• To disable spooling: Select the radio button labeled Print directly to the printer.
Printing Defaults: When the printer is set up as a network printer on a server, Printing
Defaults needs to be used to set the printer options. The values from this screen will be filled
into the Windows Drivers when they are installed on local PCs with the Add Printer Wizard.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
