5.5.24 Smart Card Pulley and Belt

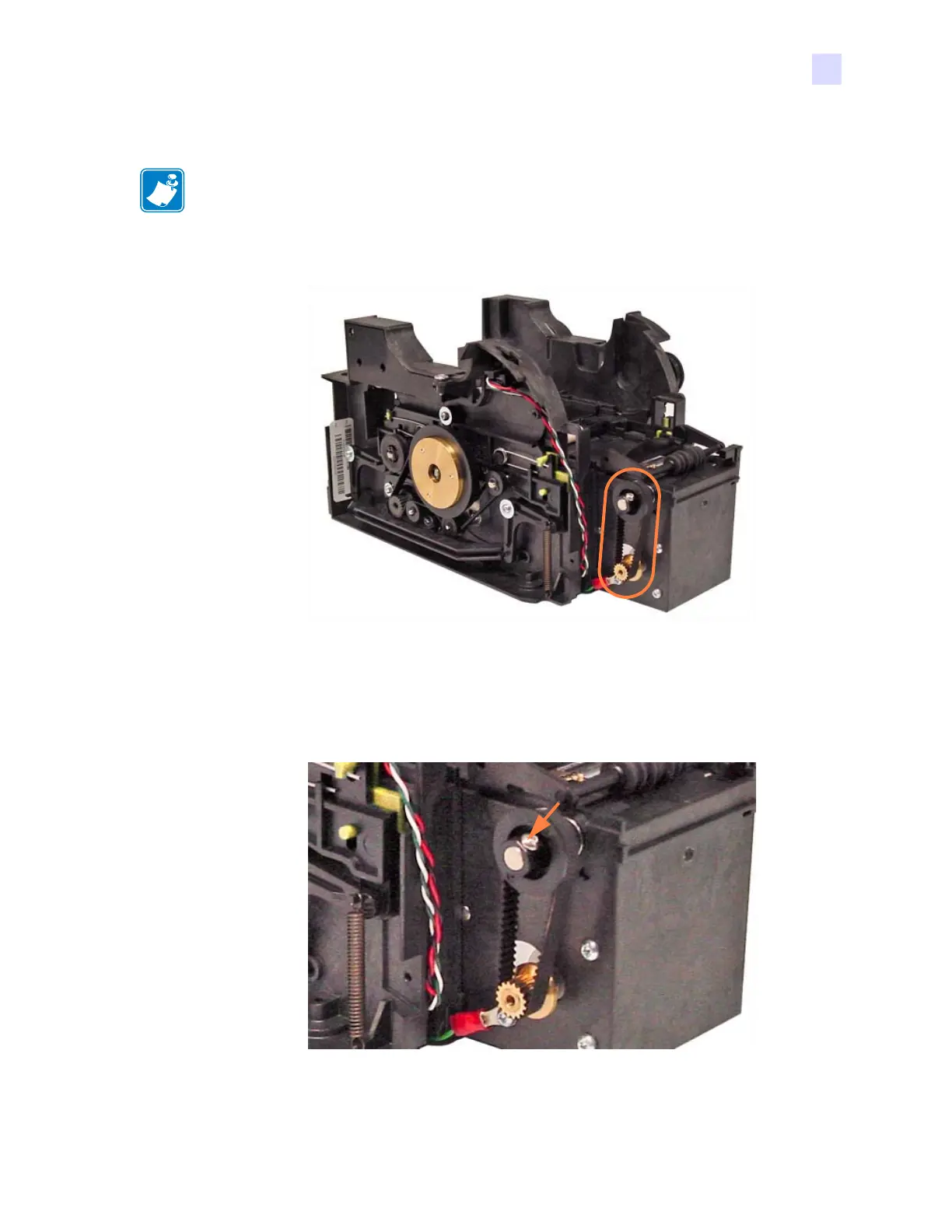

Step 1. Locate the Smart Card Pulley and Belt (circled below).
Step 2. Remove the Belt.
Step 3. With a TORX T8 driver, loosen the screw (SCR M2.5x10MM, 5.5 in-lb) that holds
the Smart Card Pulley to the shaft; arrow below.
Step 4. Remove the Smart Card Pulley.
NOTE • This procedure uses Spare Kit # P1031925-034: KIT, PULLEY BELT
SMARTC
ARD.
