Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Print a Test Card
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 71

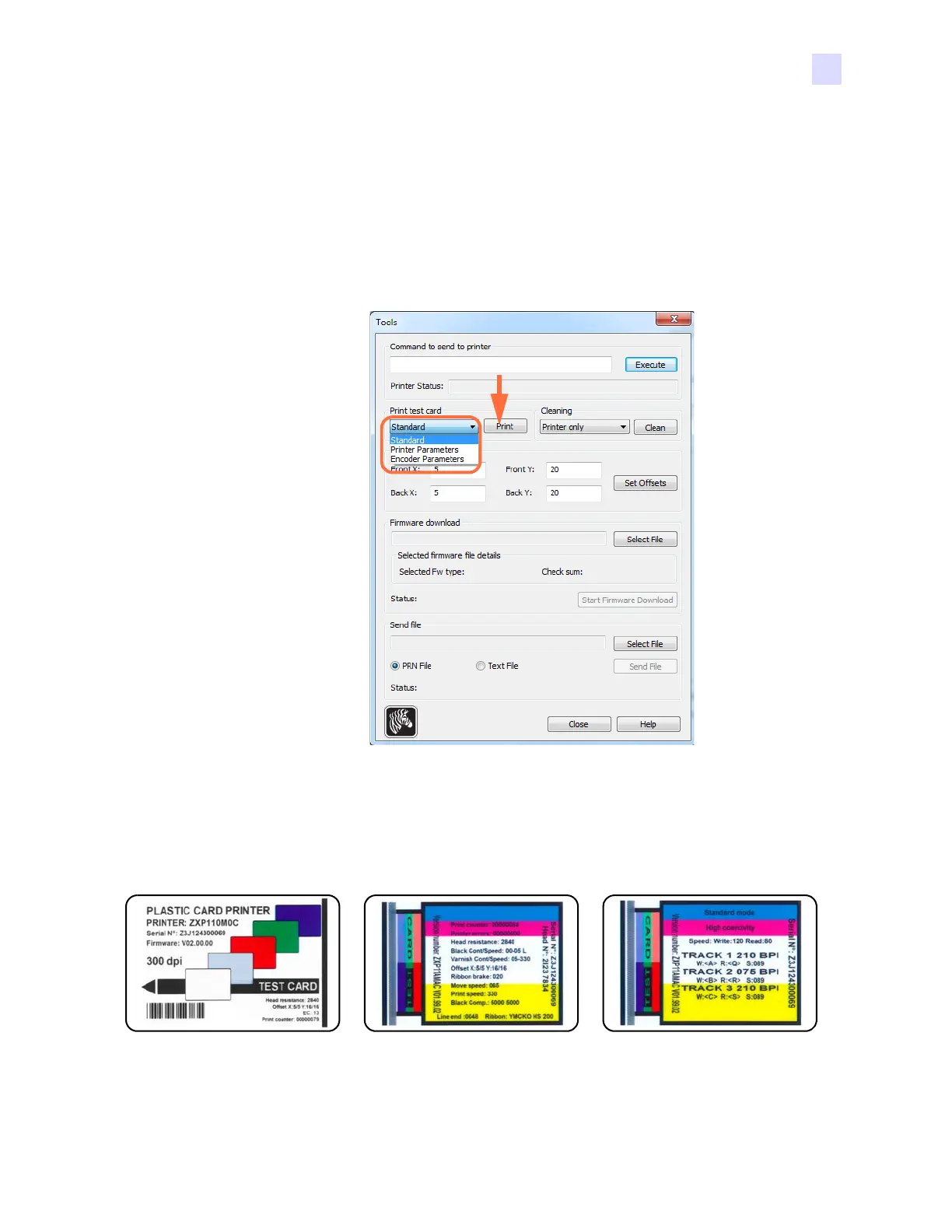

2.11 Print a Test Card
With ribbon cartridge and cards loaded, your printer is ready to print. To check the operation of
the printer, you should print a test card.
1. Select Printer properties > Device Settings; and click on the Tools button.
2. Observe the Tools window.
3. From the Print Test Card dropdown menu, select the desired test card (circled above).
4. Click on the Print button (arrow above); see sample test cards below.
Standard: Printer Parameters: Encoder Parameters:

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
