Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Changing the Printer Driver Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 61

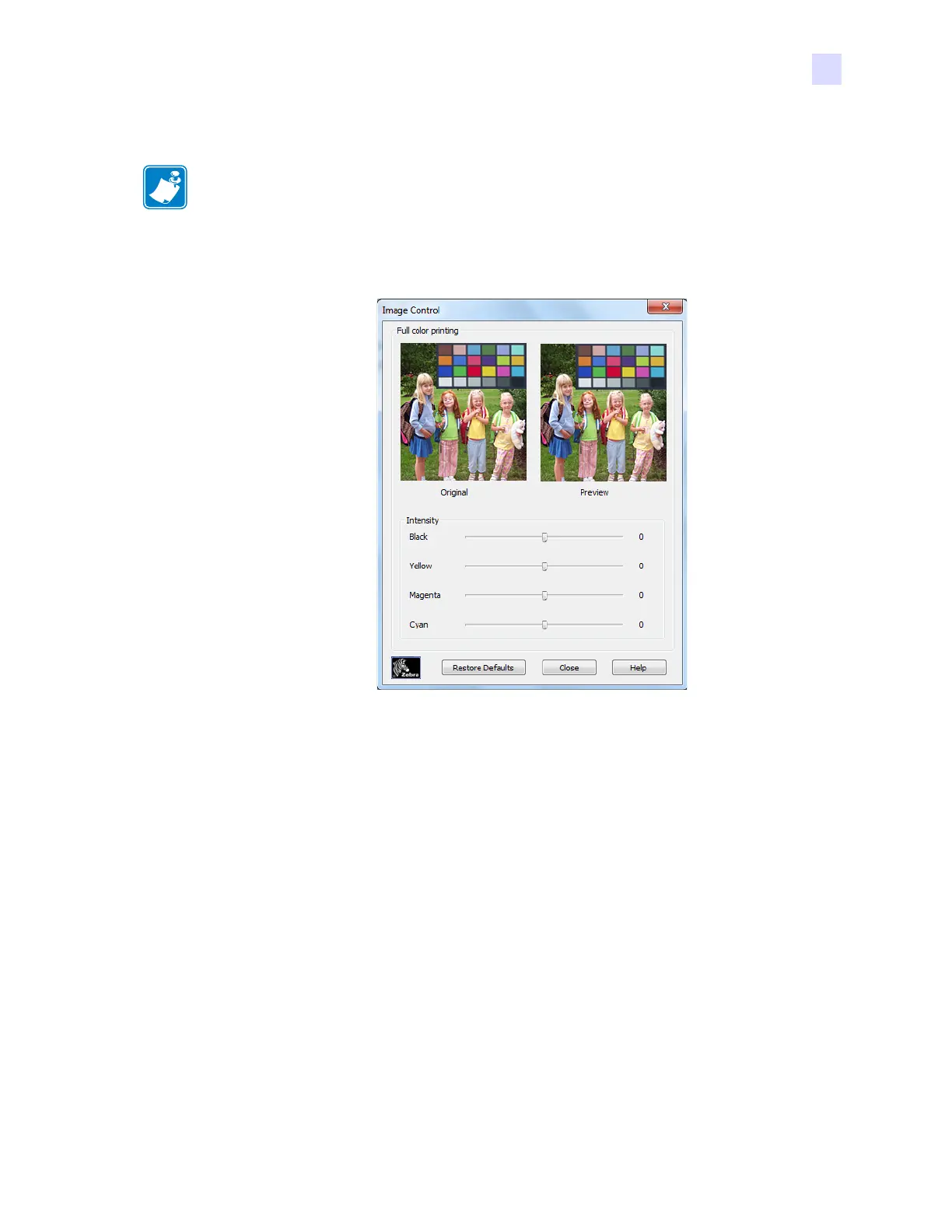

Image Control
Allows you to adjust the image colors; these adjustments apply to the entire card, not just
photographic image.
- Intensity - increase or decrease the image intensity by moving the Black, Yellow,
Magenta, and Cyan slider bars left or right. This will change the overall lightness or
darkness of the image. Move the slider to the right (0 to 100) to increase the intensity
and to the left (0 to -100) to decrease the intensity. Note that color ribbon wrinkling
can be eliminated by reducing the intensity.
Use the Restore Defaults button to reset the settings to the driver defaults.
Note • Printed colors can appear different than displayed colors; the following controls
allow you to optimize the printed results.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
