5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 147

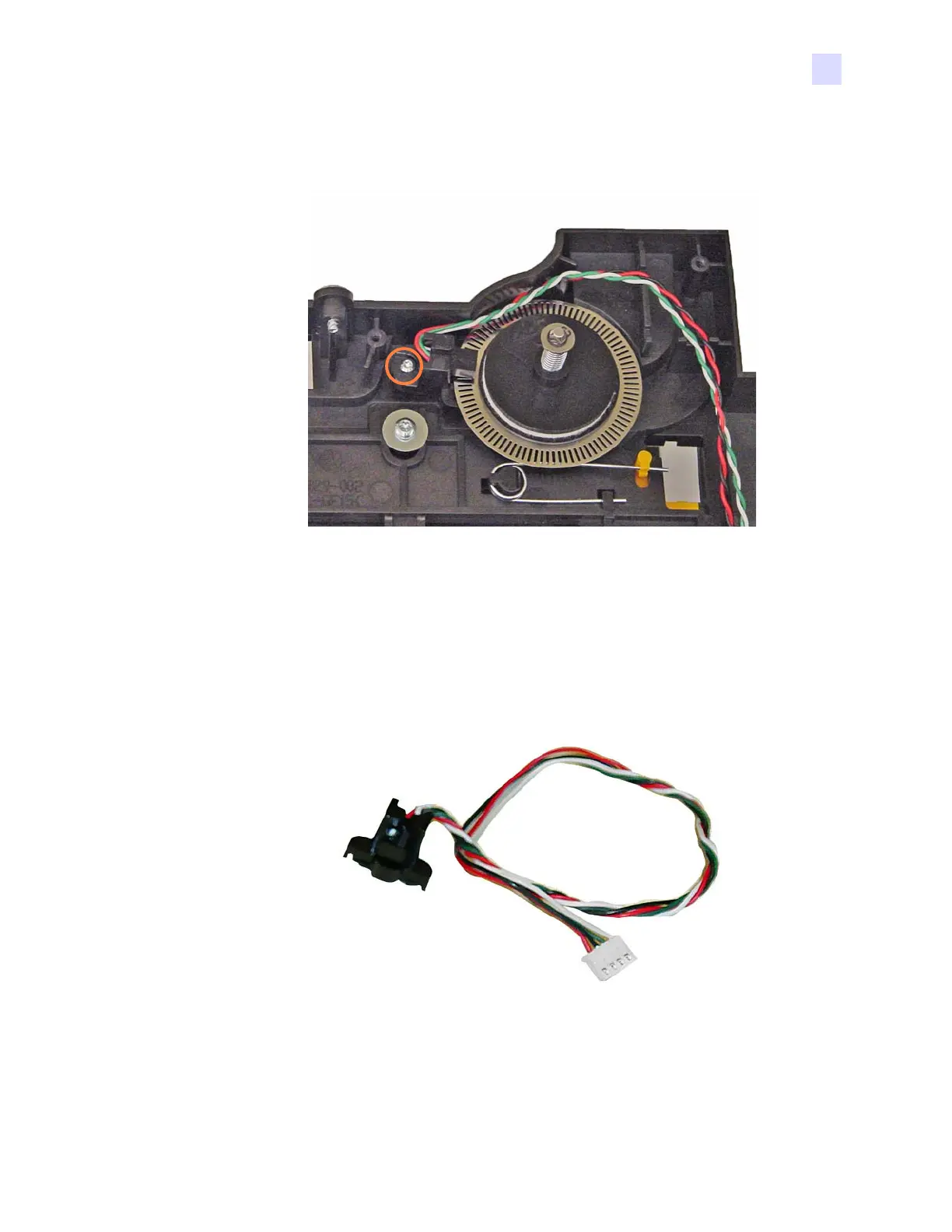

Step 4. With a TORX T7 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb) holding
the sensor in place.; circled below.
Step 5. If not already done, disconnect the Ribbon Flag Position Sensor plug from
connector J6 on the Main
PCBA.
Step 6. If necessary, cut any cable ties preventing sensor removal.
Step 7. Remove the Ribbon Flag Position Sensor.
