5: Replacement Procedures

Procedures

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 189

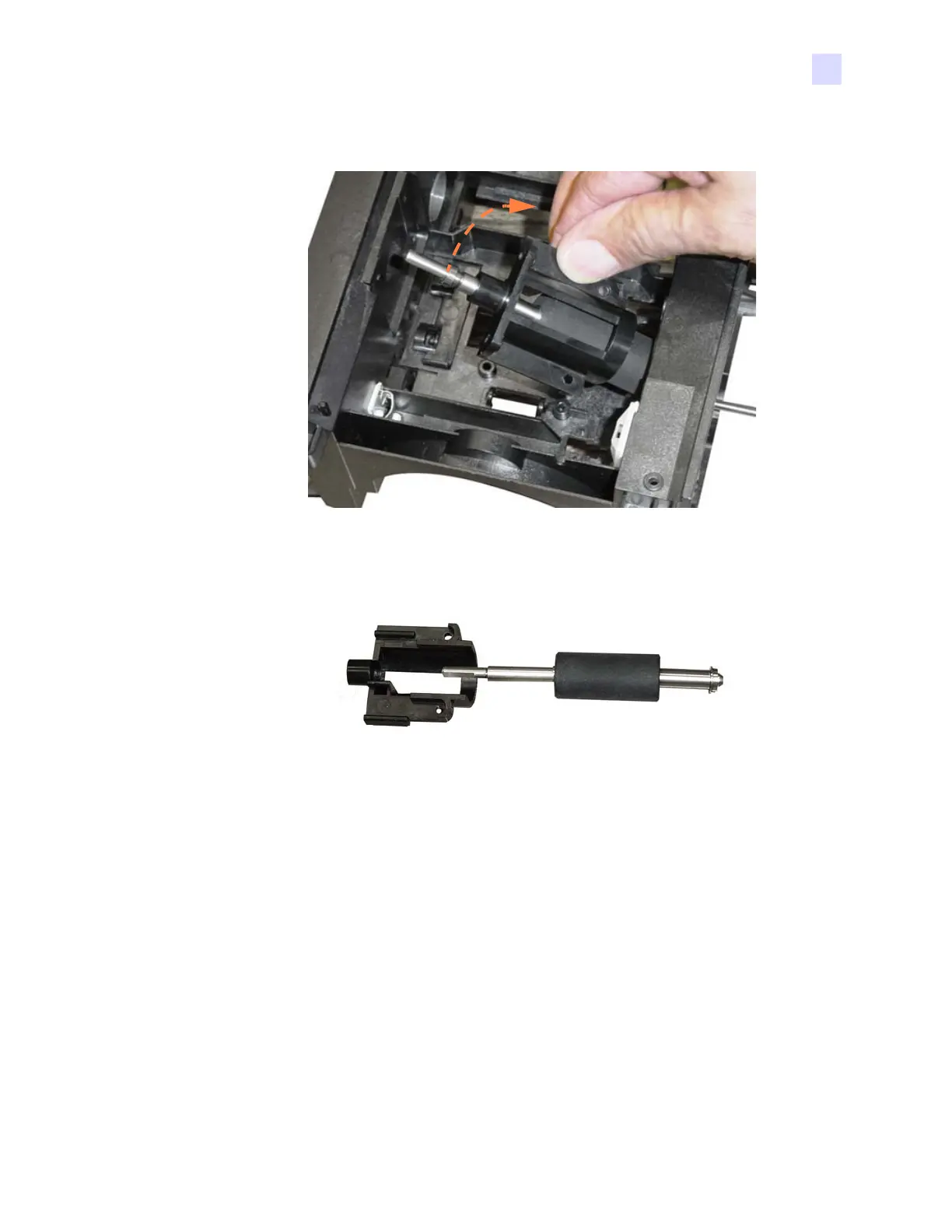

Step 7. Lift the assembly up and out of the Print Engine.

Step 8. Slide the bearing and the support collar off the roller.
