Zebra ZXP Series 3 Service Manual

C: Accessing a Network Printer via a Web Browser
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 211

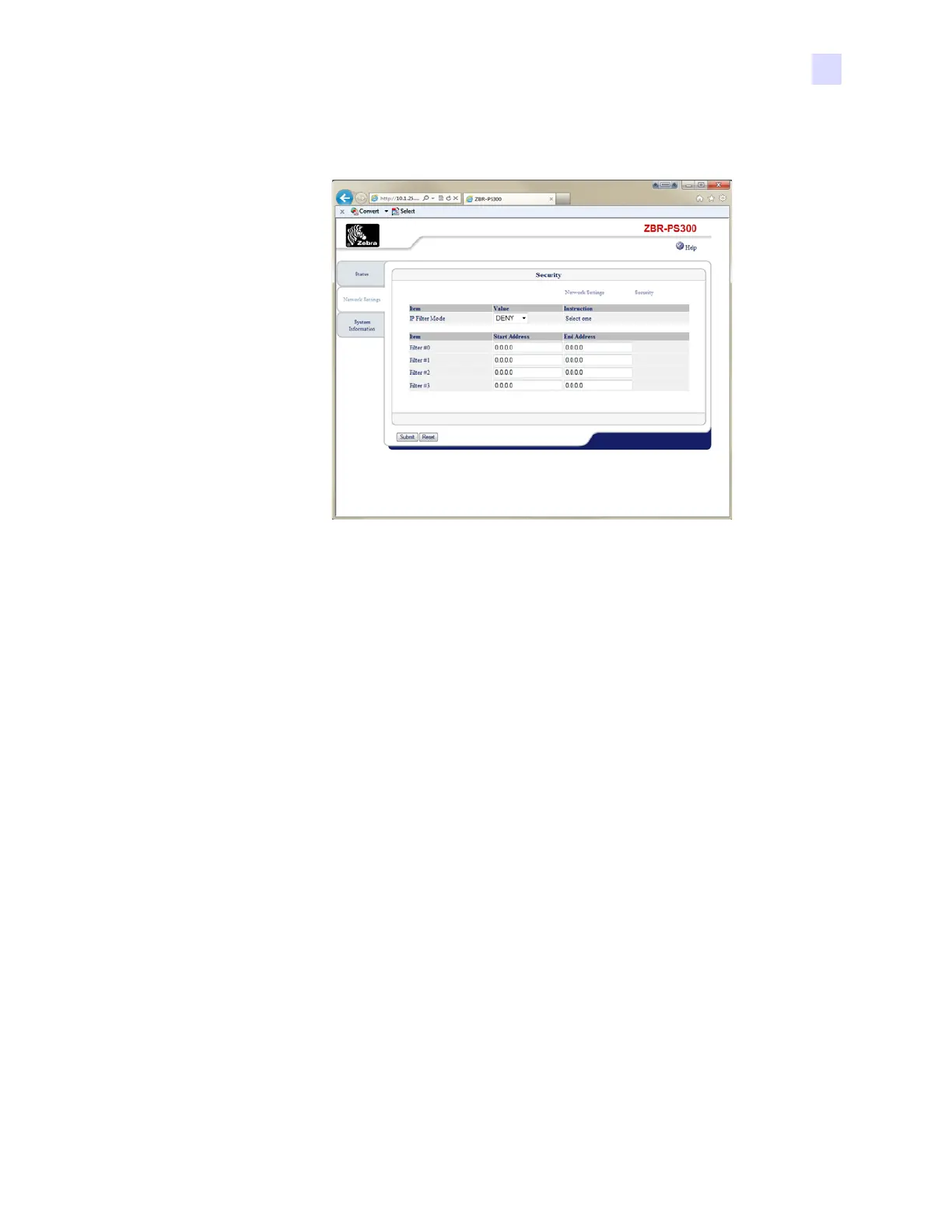

Security
• IP Filter Mode Configure the IP filter operations. Available options are
ALLOW and DENY. If you select ALLOW, only the data
from the configured IP address range can be accepted. If
you select DENY, the data from the configured IP address
range cannot be accepted.
• Start Address (Filter#0-#3) Configure the start address of the IP filter. The value must
be configured in the format of a four-part series of
numbers separated by decimal points, such as
xxx.xxx.xxx.xxx.
• End Address (Filter#0-#3) Configure the end address of the IP filter. The value must
be configured in the format of a four-part series of
numbers separated by decimal points, such as
xxx.xxx.xxx.xxx.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
